Keysight S97007B/R-A4C-001-L Automatic Fixture Removal Software
Request a quote
Keysight Automatic Fixture Removal is VNA software that extracts and removes fixture S-parameters from non-coaxial device measurements for accurate characterization.
Product details
| Model | S97007B/R-A4C-001-L |
| Manufacturer | Keysight |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
Keysight Automatic Fixture Removal (AFR) is a software option for the Streamline Series vector network analyzer. It enables engineers to accurately remove fixture effects from measurements of non-coaxial devices, simplifying the characterization of devices under test (DUT) that lack coaxial connectors. This eliminates the need for complex electromagnetic simulation or multiple on-board calibration standards.
Key Features
- Extracts S-parameters from 2x thru or one-port measurements

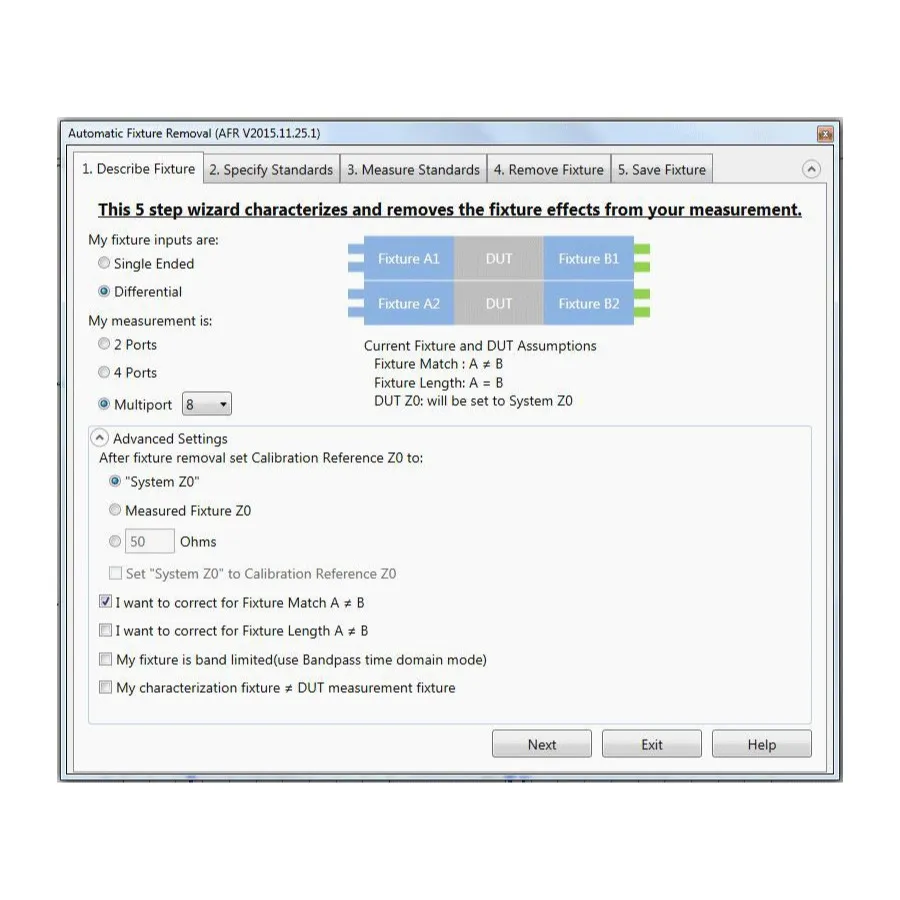

- Step-by-step wizard guides characterization and fixture removal process
- Supports single-ended and differential device measurements
- De-embedded files can be saved in multiple formats for use in Streamline Series VNA or other tools
- Compatible with all USB vector network analyzers
- Node-locked license with 12-month KeysightCare software support subscription included
Applications
- Characterization of non-coaxial devices and components
- RF and microwave device testing and validation
- Simplifying fixture de-embedding workflows
- Device under test (DUT) measurement accuracy improvement
Specifications
| Series | Streamline Series |
