Keysight N9962BU/357 Pulse Generator Option
Request a quote
Keysight N9962BU/357 pulse generator option for FieldFox analyzers enables signal analysis and generation up to 54 GHz with customizable pulse sequences.
Product details
| Model | N9962BU/357 |
| Manufacturer | Keysight |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
The Keysight N9962BU/357 is a pulse generator option for FieldFox handheld analyzers that expands functionality to include both signal analysis and generation. With carrier signals reaching up to 54 GHz (depending on FieldFox model), this option enables users to perform radar field tests, automotive radar receiver verification, and RF leakage measurements without requiring additional equipment.
Key Features
- Carrier signal generation up to 54 GHz
- Wide range of customizable pulse sequences
- FM chirp capability
- Continuous wave (CW) signals with amplitude modulation (AM), frequency modulation (FM), FSK, and BPSK

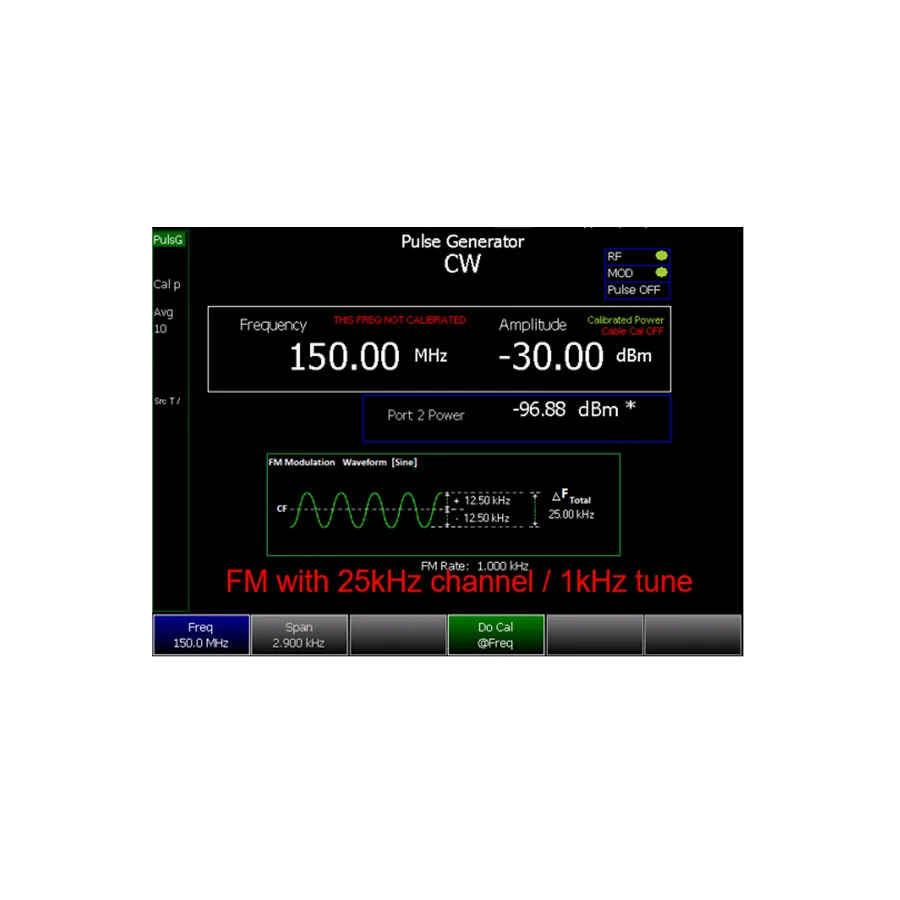

- Graphical user interface for signal parameter and waveform display
Applications
- Radar field testing for air traffic agencies
- Automotive radar signal simulation and receiver verification
- RF leakage measurement in mobile EMI chambers
