Keysight N9936BU/357 Pulse Generator Option
Request a quote
Keysight N9936BU/357 Pulse Generator Option provides signal generation up to 54 GHz with customizable pulse sequences, FM chirp, and AM/FM/FSK/BPSK modulation.
Product details
| Model | N9936BU/357 |
| Manufacturer | Keysight |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview

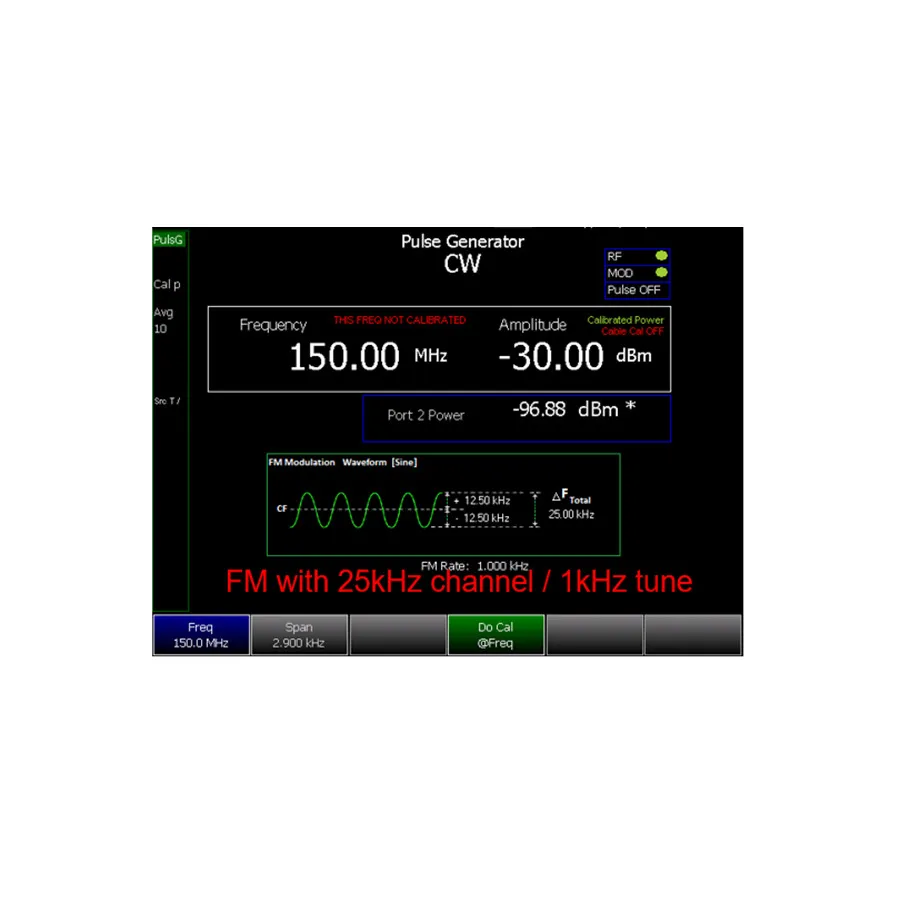

The Keysight N9936BU/357 Pulse Generator Option enhances FieldFox handheld analyzer functionality by integrating a built-in pulse and signal generator. This combination enables users to perform both signal analysis and generation in a single portable instrument, eliminating the need for additional equipment.
Key Features
- Carrier signal generation up to 54 GHz (model dependent)
- Customizable pulse sequences and signal patterns
- FM chirp generation capability
- Continuous wave (CW) signal generation with and without modulation
- Amplitude modulation (AM), frequency modulation (FM), frequency shift keying (FSK), and binary phase shift keying (BPSK) support
- Graphical user interface for parameter and waveform display
Applications
- Radar field testing for air traffic agencies
- Automotive radar signal simulation for receiver verification
- RF leakage measurement in mobile EMI chambers
