Keysight N9912CU/330 Pulse Measurements Option
Request a quote
Pulse measurements option for FieldFox to characterize pulsed RF signals with KPIs including rise time, pulse width, and peak power, requires USB sensor and Option 302.
Product details
| Model | N9912CU/330 |
| Manufacturer | Keysight |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
Option 330 is the Pulse Measurements option for FieldFox C-Series analyzers, designed for efficient characterization of pulsed RF signals. This option enables the measurement of important key performance indicators (KPIs) such as average power, peak power, and peak-to-average ratio. It is particularly useful for checking radar signal quality in the field with a lightweight, portable unit.
Key Features
- Average power, peak power, and peak-to-average ratio measurements
- Rise time, fall time, pulse width, pulse period, and pulse repetition frequency analysis
- Analog gauge and digital display in dBm and watts
- Relative and absolute measurements with dB or percentage units
- Minimum and maximum limit capability for automated testing

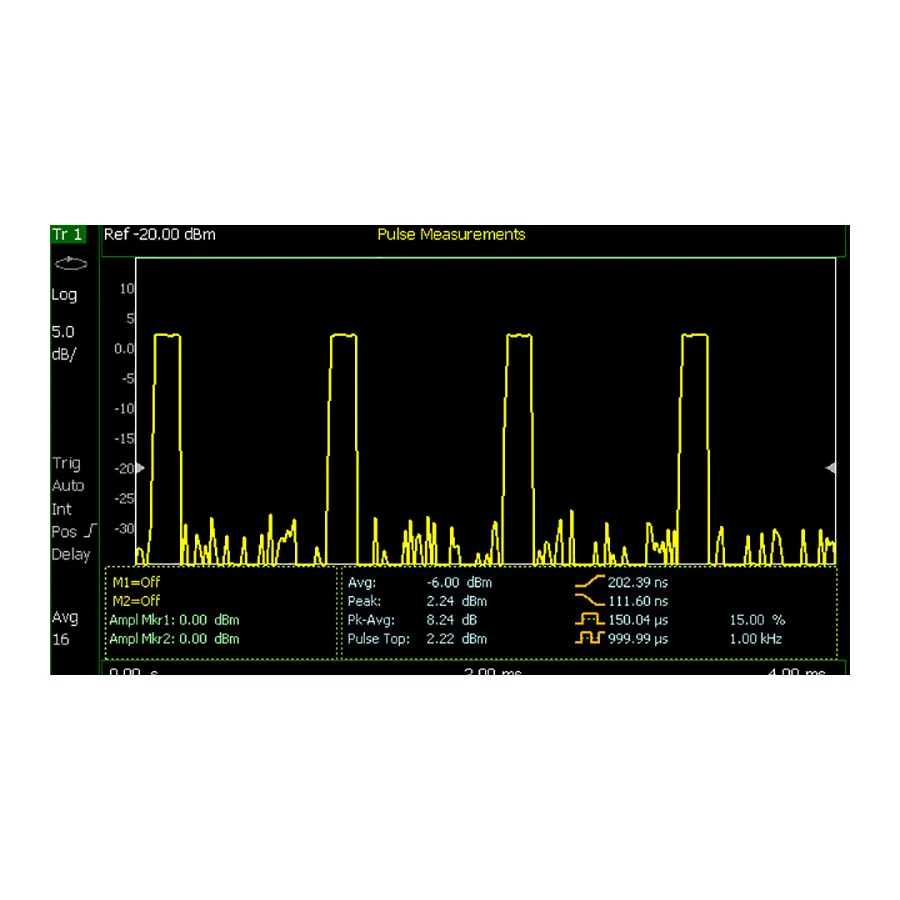

- Trace graph for pulse profiling with gating functionality
Applications
- Radar signal quality verification in field environments
- Pulsed transmitter performance testing and characterization
- Defense and military RF equipment validation
Technical Requirements
Option 330 requires a Keysight USB peak power sensor (sold separately) and Option 302 (USB Power Sensor Support Option) to function.
Specifications
