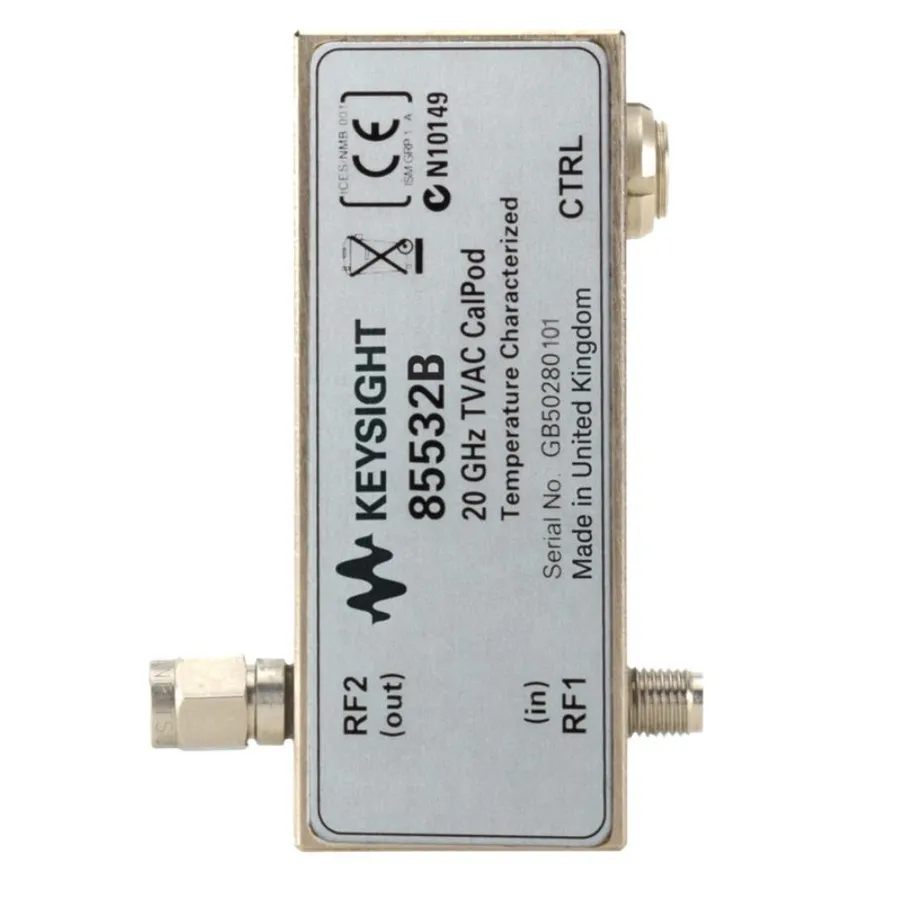

Keysight 85532B/STD TVAC CalPod

Overview

The Keysight 85532B/STD is a 20 GHz CalPod calibration refresh module designed for use in thermal-vacuum chamber applications. It enables remote recalibration of network analyzers without requiring removal of the Device Under Test or physical connection of standards, making it ideal for systems using very long cables in temperature-controlled or vacuum chamber environments.

Key Features

• Frequency range: 100 MHz to 20 GHz
• Amplitude re-correction: ±0.05 dB (typical)
• Phase re-correction: ±1.5° (typical)
• Directivity re-correction: -38 dB (typical)
• Operates in thermal-vacuum (TVAC) environments
• 2.92 mm connectors
• 2-meter CP drive cable included

Compatible Analyzers

• PNA-X N524xA series
• PNA N522xA series
• PNA-L N5231/32/34/35/39A series
• M937xA PXIe vector network analyzers

Applications

• Remote recalibration of network analyzers in thermal-vacuum chambers
• Eliminating errors due to cable or test system instability
• Recalibration from remote locations for systems with extended cable runs
