Anritsu MS2080A-0888 5G NR Downlink Measurements Software Option
Request a quote
Anritsu MS2080A-0888 5G NR Downlink Measurements software for Field Master MS2080A, supporting frequency range 10 MHz to 6 GHz with bandwidth 5–100 MHz and OTA testing.
Product details
| Model | MS2080A-0888 |
| Manufacturer | Anritsu |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
The Anritsu MS2080A-0888 is a 5G NR downlink measurement software option designed for the Field Master MS2080A. As 5G base stations become prevalent with active antenna systems and reduced test access points, over-the-air (OTA) measurements become essential. This option supports both direct connect and OTA measurement of 5G base stations, identifying synchronization signal blocks (SSB) for accurate signal quality assessment.
Key Features
- Frequency Range: 10 MHz to 6 GHz (option dependent)
- Channel Bandwidth: 5 MHz to 100 MHz in 5 MHz steps
- Subcarrier Spacing: 15, 30, 120, 240 kHz
- Band Configuration: Manual, Global All, selectable Band #, ARFCN, GSCN
- Auto SSB Detect: Searches 3GPP defined GSCN raster
- Input Signal Range: –76 dBm to +10 dBm

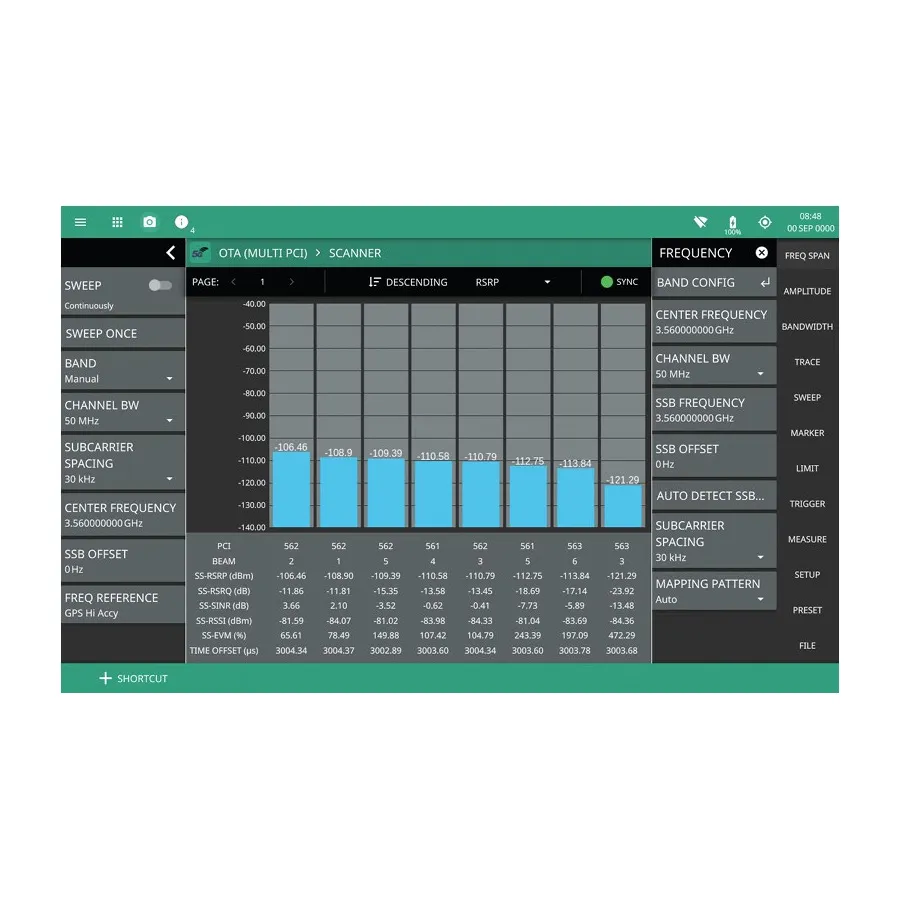

- Multiple base station identification by physical cell ID (PCI)
- Relative performance and time of arrival display
Applications
- 5G base station installation and commissioning
- Signal quality measurements with OTA testing
- Network coverage mapping and optimization
- Multi-cell base station performance verification
- Synchronization signal block (SSB) identification and analysis
Specifications
