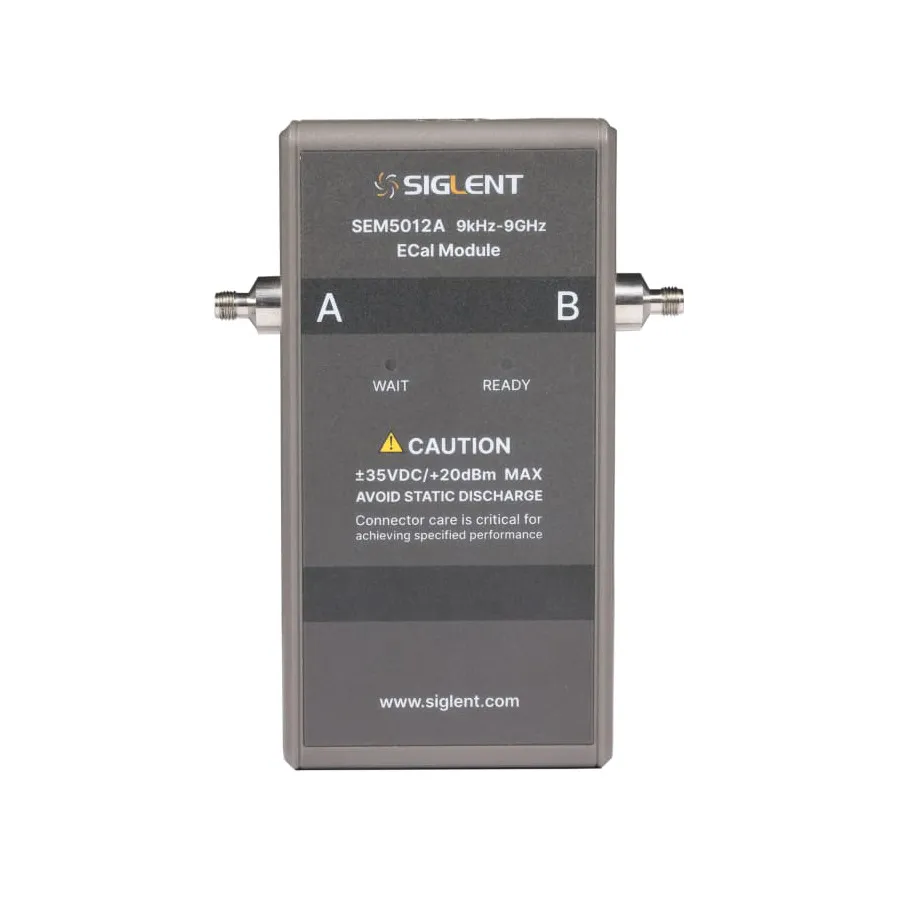

Siglent SEM5012A Electronic Calibration Module
Request a quote
Two-port electronic calibration module for network analyzers, operating 9 kHz to 9 GHz with SMA female connectors for extended frequency coverage.
Product details
| Model | SEM5012A |
| Manufacturer | Siglent |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Siglent SEM5012A is an electronic calibration module designed for high-frequency vector network analyzer calibration and error correction up to 9 GHz. Compatible with Siglent's SHA800A, SVA1000X, SNA5000X, SNA5000A, and SNA6000A series analyzers, it provides precise calibration reference for millimeter-wave and high-frequency microwave applications.
Key Features
- Two SMA female ports for analyzer connection
- Extended operating frequency range of 9 kHz to 9 GHz
- Electronic calibration for accurate high-frequency VNA measurements
- Compatible with multiple Siglent analyzer models
- Enables characterization of high-speed devices and components
Applications
- High-frequency RF and microwave network analyzer calibration
- Millimeter-wave device characterization and measurement
- 5G component testing and verification
- Advanced laboratory and manufacturing quality assurance
Specifications
| Frequency | 9GHz |
| Connector Type | SMA(f) |
| Number of Ports | 2 |
| Series | SEM5000A Series |
