Maury Microwave A035E 1.85/2.4mm Connector Gage

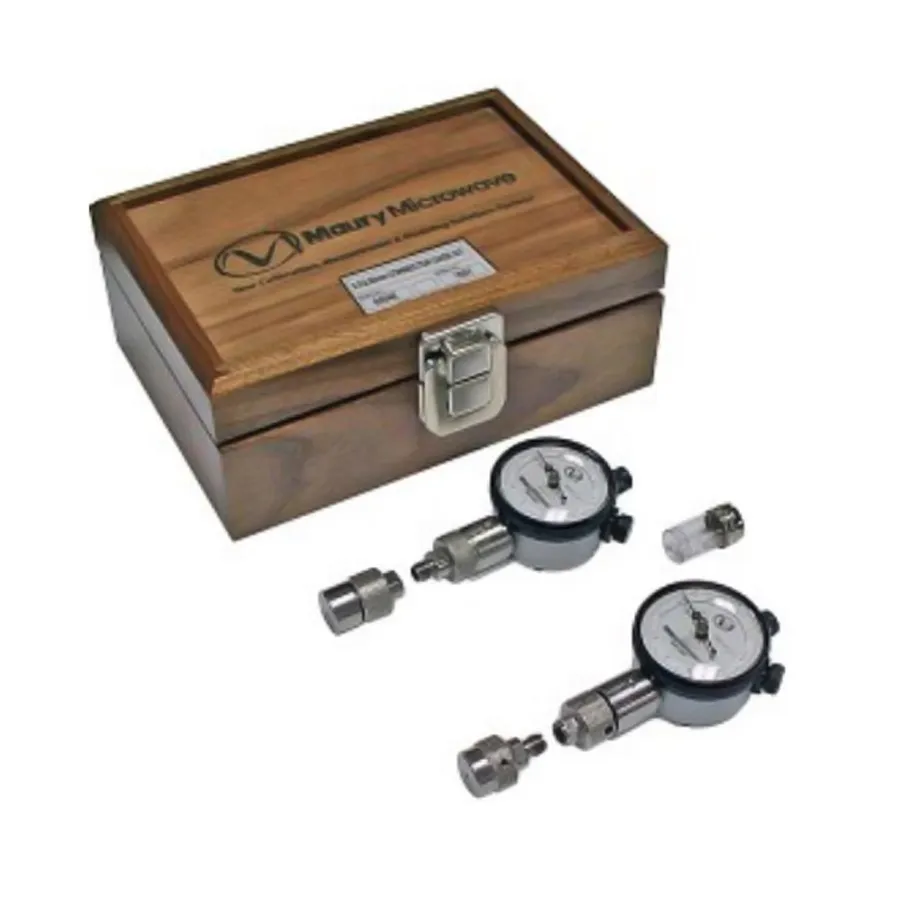

Maury Microwave A035E is a 1.85/2.4mm connector gage kit with thread-on metrology design and 0.0001 inch dial resolution measuring female and male pin interface locations.
Product details
| Model | A035E |
| Manufacturer | Maury Microwave |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Maury Microwave A035E is a connector gage kit designed for precision 1.85mm and 2.4mm coaxial connectors. It features metrology-grade thread-on construction that allows accurate measurement of female and male contact pin interface locations with self-checking capability.
Key Features
- Direct reading measurement with self-checking capability
- Metrology grade thread-on design for accurate interface measurements
- 0.0001 inch dial resolution for high-precision measurements
- Measures 1.85mm and 2.4mm connector pin interface locations
- Accommodates both female and male contact configurations
How It Works
The gage kit includes specially adapted dial indicators and the necessary bushings and pins to mate with 1.85mm and 2.4mm precision connectors. Master setting gages are used to adjust the dial indicator to zero before the thread-on gage is mated with a connector to measure the distance from the interface to the outer conductor mating plane.
Applications
- RF and microwave connector metrology
- Network analyzer calibration and verification
- Precision connector quality assurance
Specifications
| Connector Type | 1.85 / 2.4mm |
Request a quote
Maury Microwave A035E 1.85/2.4mm Connector Gage
