Maury Microwave A028D 7mm Connector Gage
Maury Microwave A028D is a 7mm connector gage kit with metrology grade thread-on design and 0.0001 inch dial resolution for measuring planar contact location.
Product details
| Model | A028D |
| Manufacturer | Maury Microwave |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview

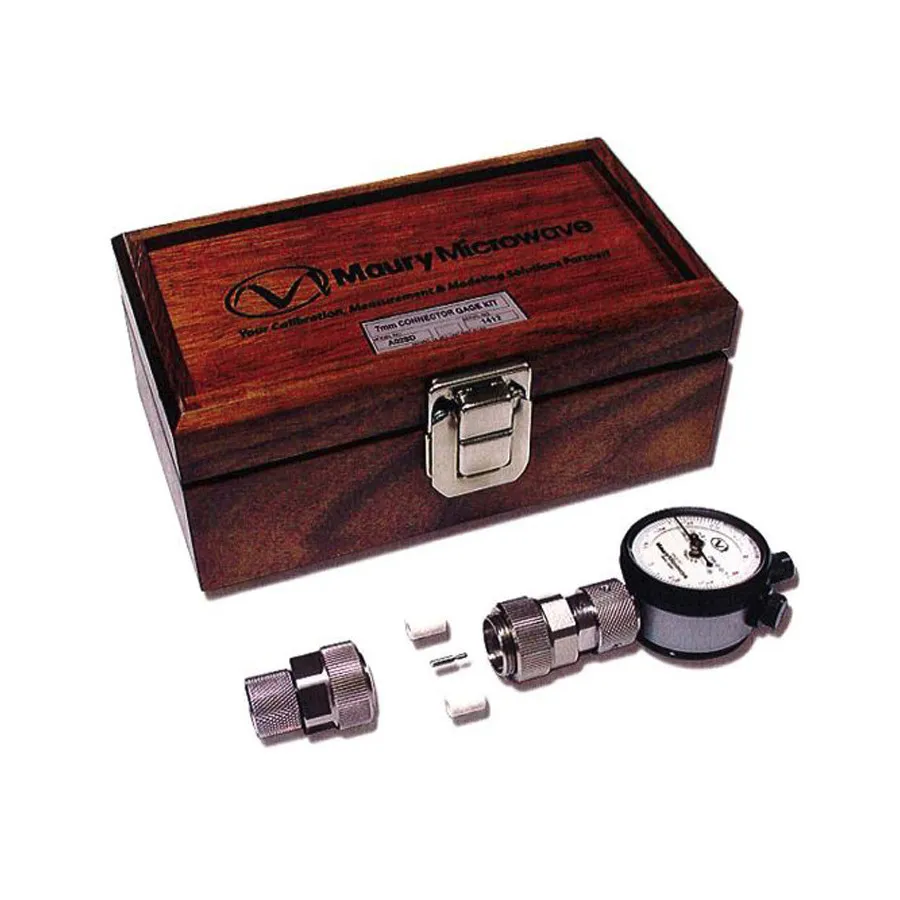

The Maury Microwave A028D is a 7mm connector gage kit designed to measure critical linear interface dimensions of coaxial connectors. It features a thread-on metrology design that allows accurate measurement of planar contact location to the outer conductor mating plane.
Key Features
- Direct reading measurement with self-checking capability
- Metrology grade thread-on design for hands-free operation
- 0.0001 inch dial resolution for high-precision measurements
- Measures 7mm connector planar contact location
How It Works
The gage kit includes specially adapted dial indicators and the necessary bushings and pins to mate with 7mm connectors. Master setting gages are used to adjust the dial indicator to zero before the thread-on gage is mated with a connector to measure the distance from the interface to the outer conductor mating plane.
Applications
- RF and microwave connector metrology
- Network analyzer calibration and verification
- Connector maintenance and quality assurance
Specifications
| Connector Type | 7mm |
