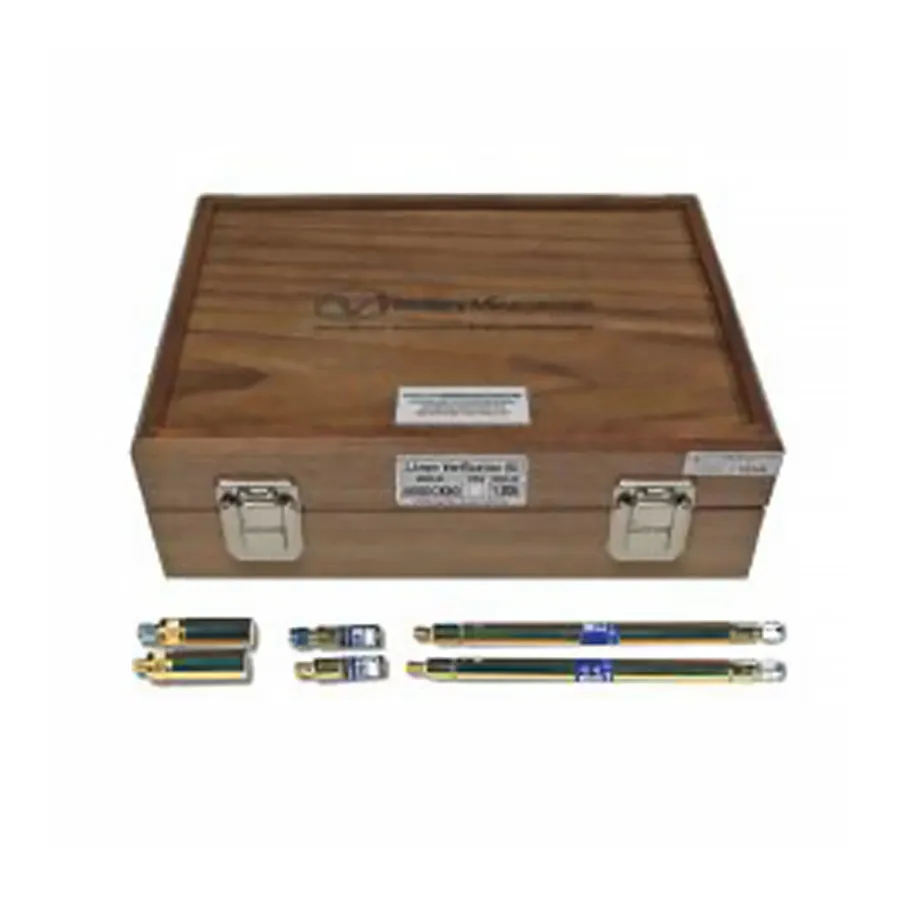

Maury Microwave 8050CK60 VNA Verification Kit

Overview

Maury Microwave's 8050CK60 is a VNA verification kit that provides definitive validation of vector network analyzer calibration accuracy. Unlike traditional validation methods relying solely on airline standards, this kit includes comprehensive verification standards for both 1-port and 2-port measurements on well-matched and mismatched devices.

Key Features

• Verification standards for 1-port and 2-port calibration validation
• 3.5mm connectors with 50Ω precision
• Frequency range: DC to 26.5 GHz
• Components: male and female loads, offset shorts, beaded airlines, beaded mismatches
• Allows validation of well-matched and mismatched Device Under Test (DUT)
• Provides more thorough measurement accuracy assessment than traditional methods

Applications

• VNA calibration validation and accuracy verification
• Systematic error assessment and residual error evaluation
• Source match and directivity validation
• Quality assurance in network measurement processes
