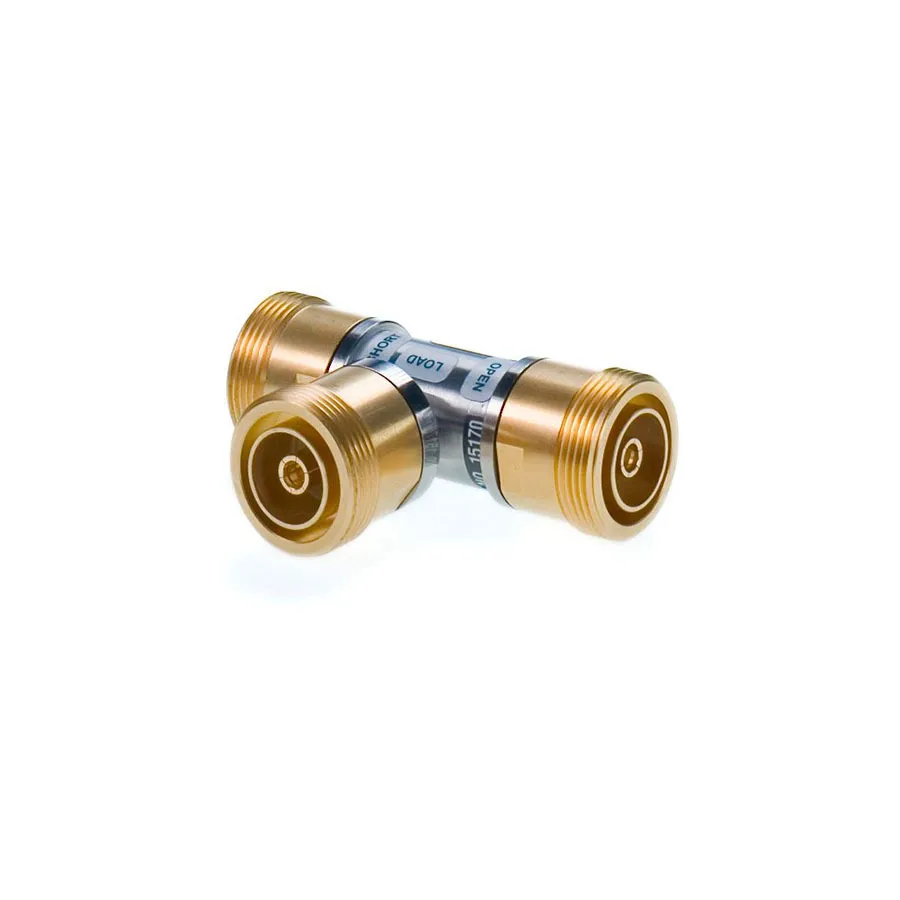

Keysight N9910X/803 T-Calibration Kit
Request a quote
Keysight N9910X/803 is a 4 GHz OSL calibration kit for network analyzers with 7/16 DIN female connectors and phase-stable design.
Product details
| Model | N9910X/803 |
| Manufacturer | Keysight |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Keysight N9910X/803 is a 4 GHz T-Calibration kit featuring an open/short/load (OSL) design for accurate network analyzer calibration. Designed for both on-site measurements and factory production testing, it offers phase-stable performance with 7/16 DIN female connectors.
Key Features
- Operating frequency range: DC to 4 GHz
- OSL (Open, Short, Load) calibration standards
- 7/16 DIN female connector interface
- High source match (≥35 dB) and directivity (≥40 dB)
- Maximum input power handling: +30 dBm
- 50 Ω impedance design
- Phase-stable construction
Applications
- Network analyzer calibration in laboratory environments
- On-site RF/microwave measurement calibration
- Factory production testing
Specifications
| Type | Mechanical OSL |
| Frequency | DC to 4GHz |
| Connector Type | 7/16 DIN(f) |
| Number of Ports | NA |
