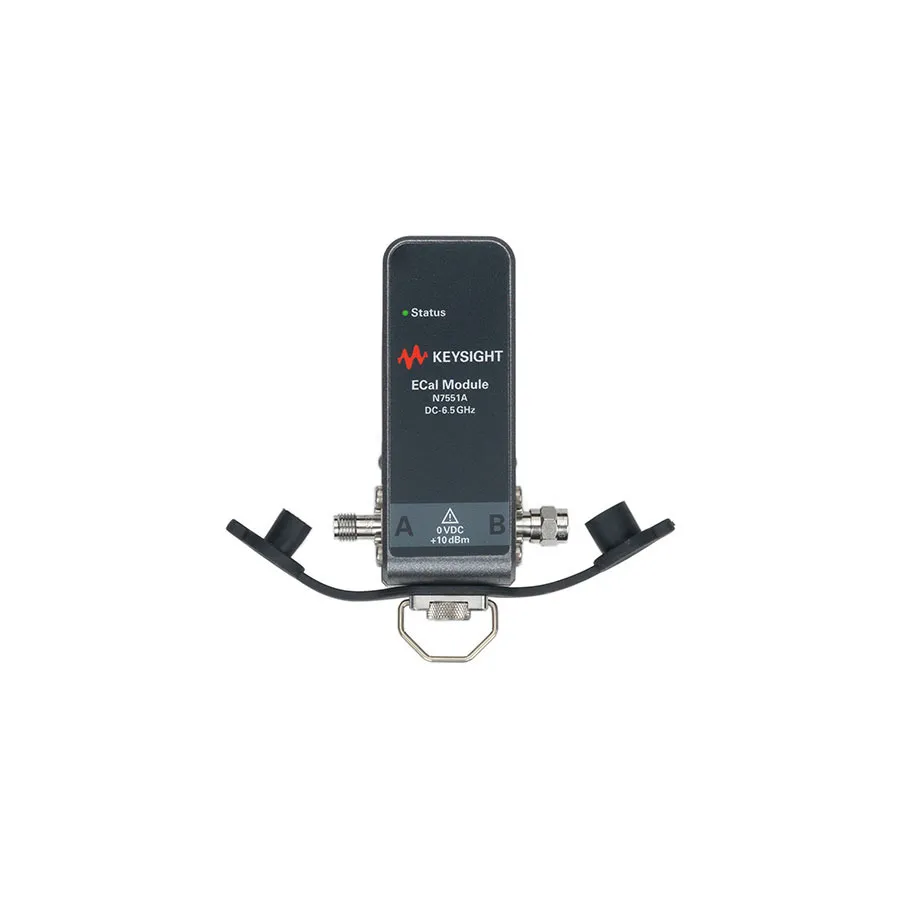

Keysight N7551A/NMF ECal Module
Request a quote
Keysight N7551A/NMF electronic calibration module for vector network analyzers, DC–6.5 GHz, 2-port with Type-N 50 Ω connectors.
Product details
| Model | N7551A/NMF |
| Manufacturer | Keysight |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Keysight N7551A/NMF is an electronic calibration module for vector network analyzers operating from DC to 6.5 GHz. This 2-port module features Type-N 50 Ω connectors (1 female, 1 male) and delivers rapid calibration with zero wait time, significantly reducing setup time compared to mechanical calibration kits. The module integrates directly with VNA firmware via USB 2.0 connectivity, enabling fully automated and accurate measurements.
Key Features
- Frequency range: DC to 6.5 GHz
- 2-port module with Type-N 50 Ω connectors (1 female, 1 male)
- Zero wait time for faster calibration versus mechanical alternatives
- USB 2.0 micro-interface connectivity
- Compact and lightweight design
- Cost-effective value-line electronic calibration solution
Applications
- Vector network analyzer calibration
- Field testing with FieldFox handheld analyzers
- Production and laboratory measurements
Specifications
| Type | Electronic |
| Frequency | DC to 6.5GHz |
| Number of Ports | 2 |
