Keysight N7551A/3FF Electronic Calibration Module
Keysight N7551A/3FF 2-port electronic calibration module with DC-6.5 GHz coverage, dual 3.5 mm female connectors, and zero wait time for faster calibration.
Product details
| Model | N7551A/3FF |
| Manufacturer | Keysight |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview

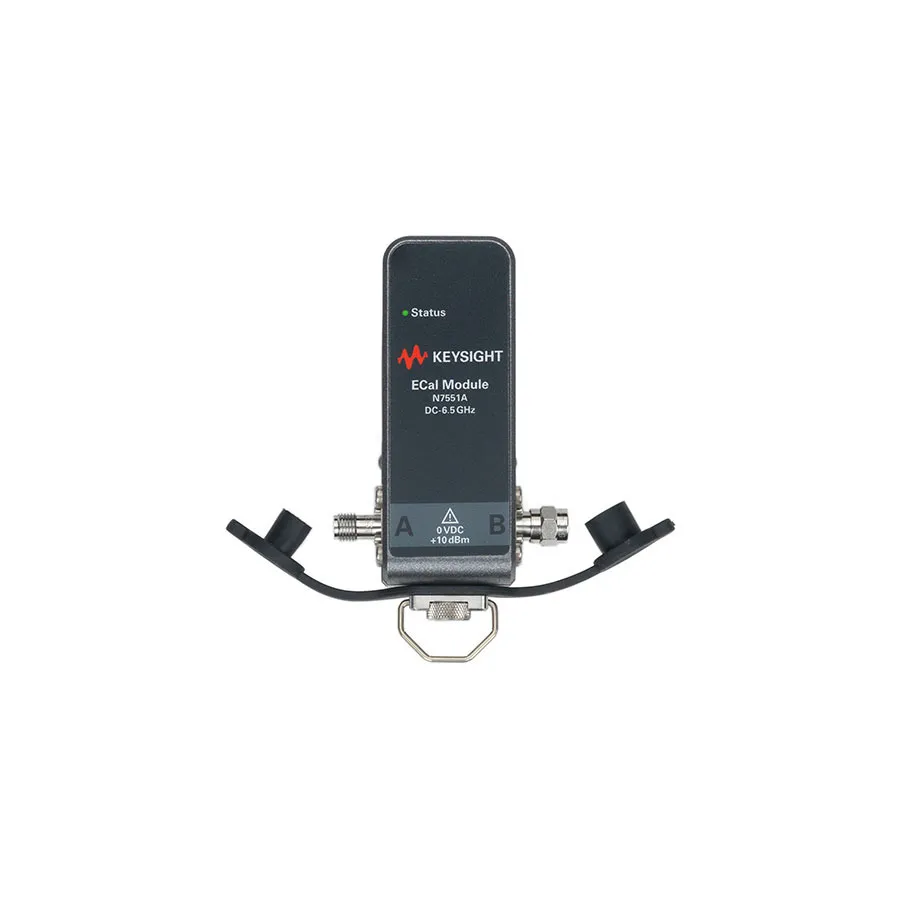

The Keysight N7551A is a 2-port electronic calibration (ECal) module from the value-line N755xA family. It provides fast, easy, and accurate calibration for vector network analyzers with frequency coverage from DC to 6.5 GHz. The N7551A/3FF variant features two 3.5 mm female connectors on the module. Compared to traditional mechanical calibration kits, it cuts calibration time in half and provides zero wait time for faster measurements. The module integrates directly with Keysight PNA-X, PNA, ENA, and PXI vector network analyzers, as well as FieldFox handheld analyzers, via USB 2.0 micro-interface control.
Key Features
- Frequency coverage: DC to 6.5 GHz
- 3.5 mm connectors (both female)
- 2-port electronic calibration module
- Zero wait time for faster calibration
- Half the calibration time of mechanical kits
- Smaller, lighter design
Applications
- Calibration of Keysight PNA-X vector network analyzers
- Calibration of PNA, ENA, and PXI vector network analyzers
- FieldFox handheld analyzer calibration
Specifications
| Type | Electronic |
| Frequency | DC to 6.5GHz |
| Number of Ports | 2 |
