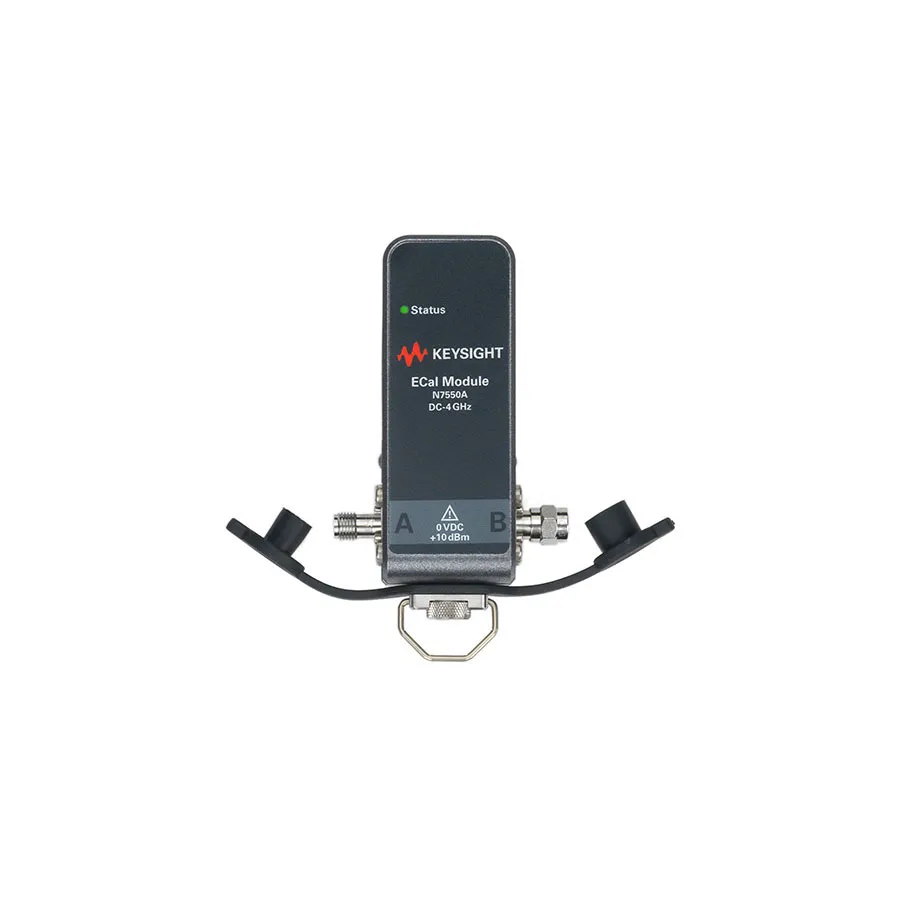

Keysight N7550A/NFF Electronic Calibration Module
Keysight N7550A/NFF is a 2-port electronic calibration module for VNAs, DC to 4 GHz with dual Type-N female connectors and zero calibration time.
Product details
| Model | N7550A/NFF |
| Manufacturer | Keysight |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Keysight N7550A/NFF is a 2-port electronic calibration (ECal) module designed for vector network analyzers. It covers the DC to 4 GHz frequency range and features dual Type-N 50 Ω female connectors. This value-line ECal module provides a cost-effective alternative to traditional mechanical calibration kits, reducing calibration time by half while maintaining accurate measurements.
The module connects via USB 2.0 micro-interface and integrates seamlessly with the instrument's firmware, simplifying calibration to a single connection for complete two-port measurement setup.
Key Features
- Frequency coverage: DC to 4 GHz
- Dual Type-N 50 Ω female connectors (NFF configuration)
- Zero wait time for immediate calibration
- Compact and lightweight design
- USB 2.0 micro-interface connection
- Integrated firmware control
Applications
- Vector network analyzer calibration for PNA-X, PNA, ENA, and PXI systems
- FieldFox handheld analyzer calibration
- RF and microwave component testing and measurement
- Production and service laboratory environments
Specifications
| Type | Electronic |
| Frequency | DC to 4GHz |
| Number of Ports | 2 |
Request a quote
