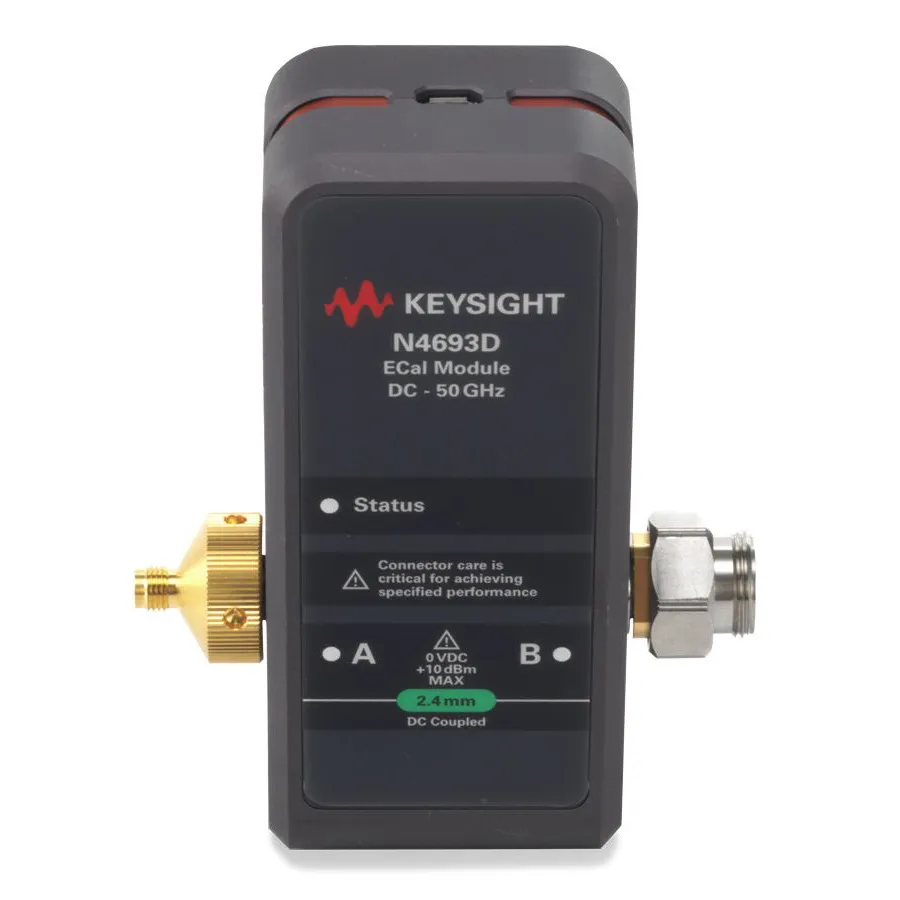

Keysight N4693D/0DC/M0F Electronic Calibration Module
Request a quote
Keysight N4693D/0DC/M0F is a precision 2-port microwave ECal module for rapid vector network analyzer calibration with 2.4mm connectors up to 50 GHz.
Product details
| Model | N4693D/0DC/M0F |
| Manufacturer | Keysight |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Keysight N4693D/0DC/M0F is a precision 2-port microwave electronic calibration (ECal) module for rapid and accurate calibration of vector network analyzers. Featuring 2.4mm connector support up to 50 GHz (or DC to 50 GHz with the DC option), it enables full two-port calibration in half the time of traditional mechanical calibration kits while reducing operator error and connector wear.
Key Features
- Precision 2-port microwave ECal with high accuracy
- Frequency coverage from 10 MHz to 50 GHz or DC to 50 GHz (DC option)
- Full two-port calibration in less than half the time versus mechanical standards
- 2.4mm connectors in male/male, female/female, or male/female configurations
- Direct USB control from Keysight vector network analyzers
- Reduced connector wear and operator error potential
Applications
- Vector network analyzer calibration and verification
- Broadband device modeling and characterization
- Time domain and signal integrity analysis
Included Accessories
- Plastic storage case
Specifications
| Type | Electronic |
| Frequency | DC to 50GHz |
| Connector Type | 2.4mm(m/f) |
| Number of Ports | 2 |
| Series | N469xD Series |
