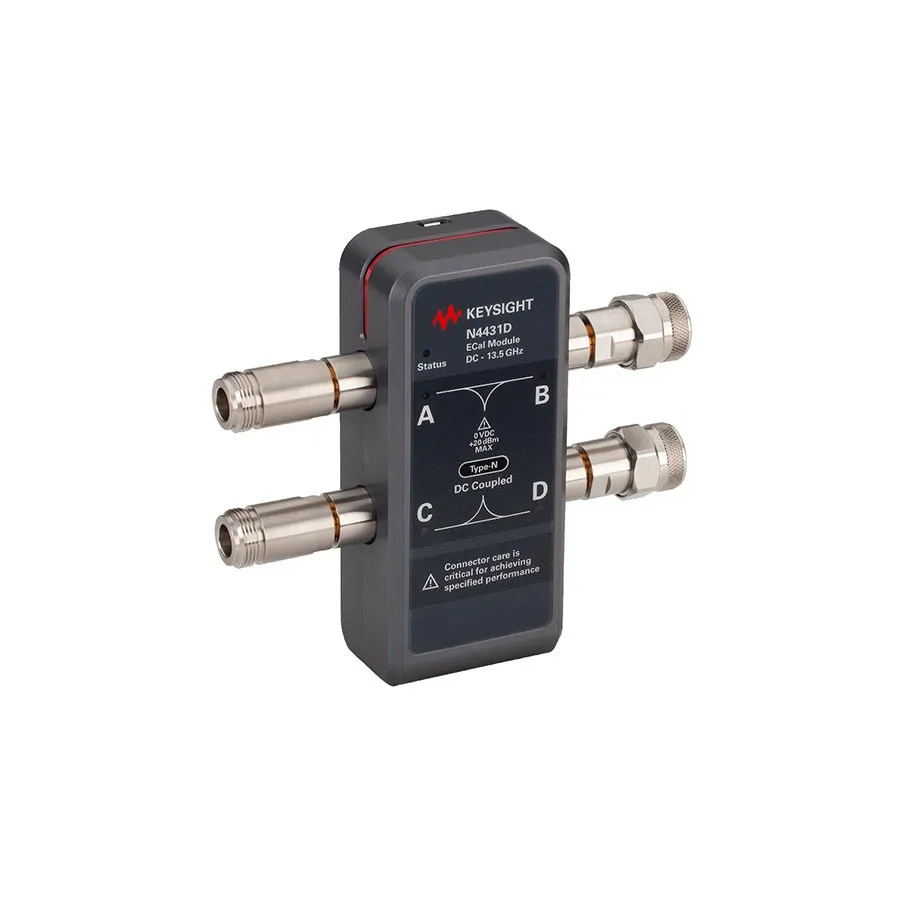

Keysight N4431D/020 Electronic Calibration Module Type-N
Request a quote
Keysight N4431D/020 is a 4-port RF ECal module with Type-N female connectors and DC-13.5 GHz coverage for precise vector network analyzer calibration via USB.
Product details
| Model | N4431D/020/0DC |
| Manufacturer | Keysight |
| Category | Analyzer Calibration Kits |
| Availability | Made to order |
Description
Overview
The Keysight N4431D/020 is a 4-port RF electronic calibration (ECal) module featuring Type-N 50 ohm female connectors, with frequency coverage from DC to 13.5 GHz. This configuration provides high-accuracy calibration for Keysight vector network analyzers while eliminating the need for mechanical calibration kits.
Using direct USB connection to the analyzer, the N4431D/020 performs full 4-port calibration in less than half the time required by traditional methods, while reducing operator error and connector wear.
Key Features
- Precision 4-port RF ECal module
- DC to 13.5 GHz frequency range
- Four Type-N 50 ohm female connectors
- Fast, accurate full 4-port calibration via single connection
- USB interface for automated control from Keysight analyzers
- Solid-state switching with reduced connector wear
- NIST-traceable calibration accuracy
Applications
- Microwave and RF device characterization
- High-frequency signal integrity testing
- Production VNA calibration and maintenance
Specifications
| Type | Electronic |
| Frequency | DC to 13.5GHz |
| Connector Type | Type-N(f) |
| Number of Ports | 4 |
| Impedance | 50 Ohm |
| Series | N443xD Series |
