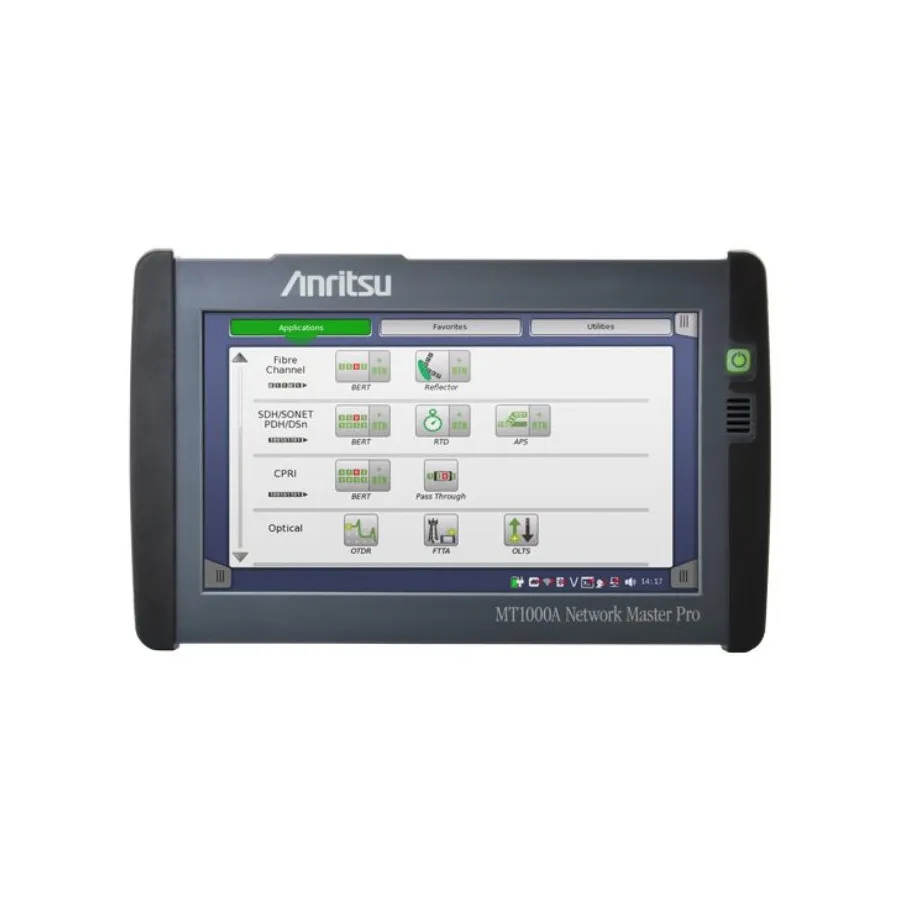

Anritsu MU100010A1 10G Multirate Transport Module

Overview

The Anritsu MU100010A1 is a 10G multirate transport module for the Network Master series, providing comprehensive Ethernet testing capabilities from 10 Mbps to 100 Gbps. This module supports advanced network commissioning and troubleshooting through extensive Ethernet tests, traffic generation, and protocol analysis features.

Key Features

• Ethernet testing at 100 Gbps, 40 Gbps, 25 Gbps, 10 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
• Traffic generation up to full line rate with IPv4 and IPv6 support
• Automated RFC 2544 tests: Throughput, Frame Loss, Latency, Packet Jitter, Burstability
• Ethernet Service Activation Test (Y.1564) and BER tests with Frame Loss and Sequence Error measurements
• TCP Throughput testing via RFC 6349 and iPerf
• Service disruption measurements and comprehensive statistics
• Synchronous Ethernet (SyncE) and PTP (IEEE 1588 v2) tests
• IEEE 1588 v2 Phase/Time synchronization for 1G/10G/25G optical interfaces
• Ethernet OAM and 10G WAN-PHY tests
• Stacked VLAN (Q-in-Q) and MPLS/MPLS-TP support with Link Fault Signaling (LFS) emulation
• Frame capture with Wireshark protocol analysis
• IP Channel Statistics for identifying error streams and network attacks

Applications

• Ethernet network commissioning and troubleshooting up to 100G speeds
• Connectivity and bandwidth testing
• QoS testing and service validation
• Mobile backhaul and carrier network testing
• Cable signal quality analysis and optical signal level monitoring
