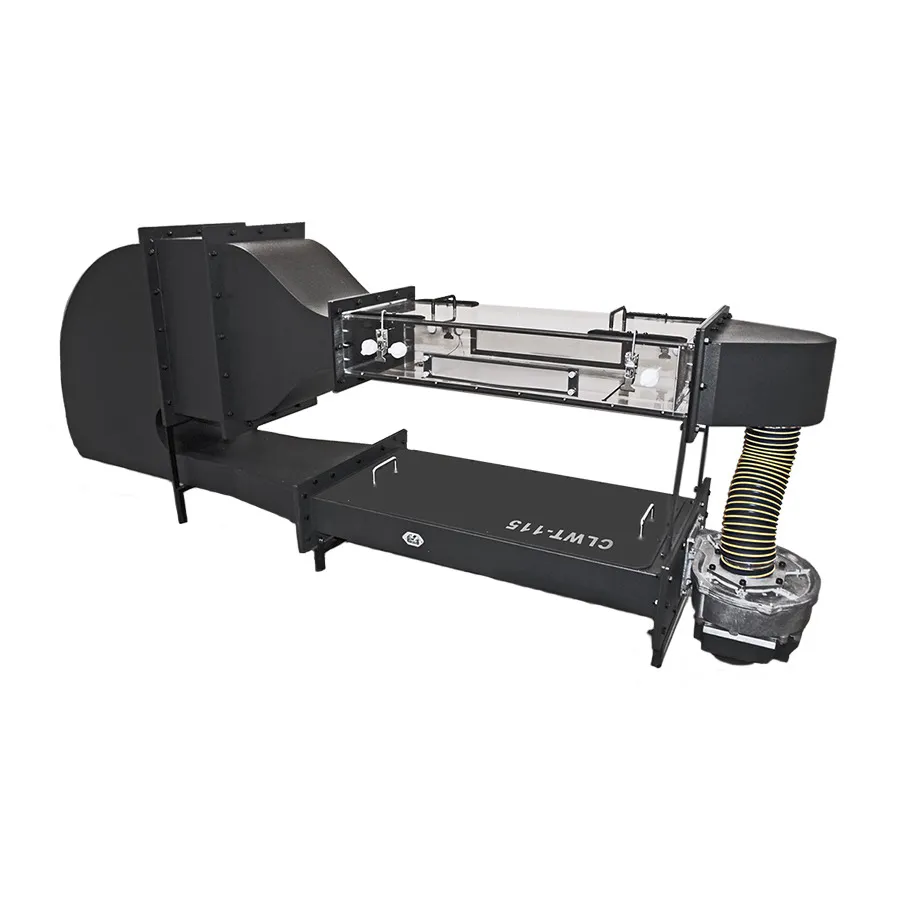

Advanced Thermal Solutions CLWT-115 Closed Loop Wind Tunnel
Request a quote
Advanced Thermal Solutions CLWT-115 is a research-quality wind tunnel for thermal testing of PCBs and components with temperature control up to 85°C.
Product details
| Model | CLWT-115 |
| Manufacturer | Advanced Thermal Solutions |
| Category | Wind Tunnels |
| Availability | Made to order |
Description
Overview
The CLWT-115 is a research-quality closed-loop wind tunnel that provides a convenient and accurate system for thermally characterizing PCBs and individual components at controlled temperatures from ambient to 85°C. The larger test section accommodates bigger specimens compared to the CLWT-067, while maintaining the same precision and recirculating air design for rapid temperature stabilization.
Key Features
- Six sensor ports for temperature and velocity measurements
- Airflow range: 1 to 5 m/s (200 to 1000 ft/min)
- Flow uniformity: ±1%
- Temperature range: ambient to 85°C (185°F)
- Temperature uniformity: ±1°C
- Power: 220VAC at 20 Amps
- Materials: Aluminum, Plexiglas, and Stainless Steel
- Test section dimensions: 77.6×26×11.6 cm (30.5×10.2×4.5 inch)
- Overall dimensions: 220.8×49.3×86.5 cm (86.9×19.4×34 inch)
- Included CLWTC-1000 controller
Applications
- Thermal characterization of large PCBs and component assemblies
- Heat sink performance testing and evaluation
- Air and temperature sensor calibration
- NEBS and other standards compliance testing
Specifications
| Product Type | Closed Loop |
