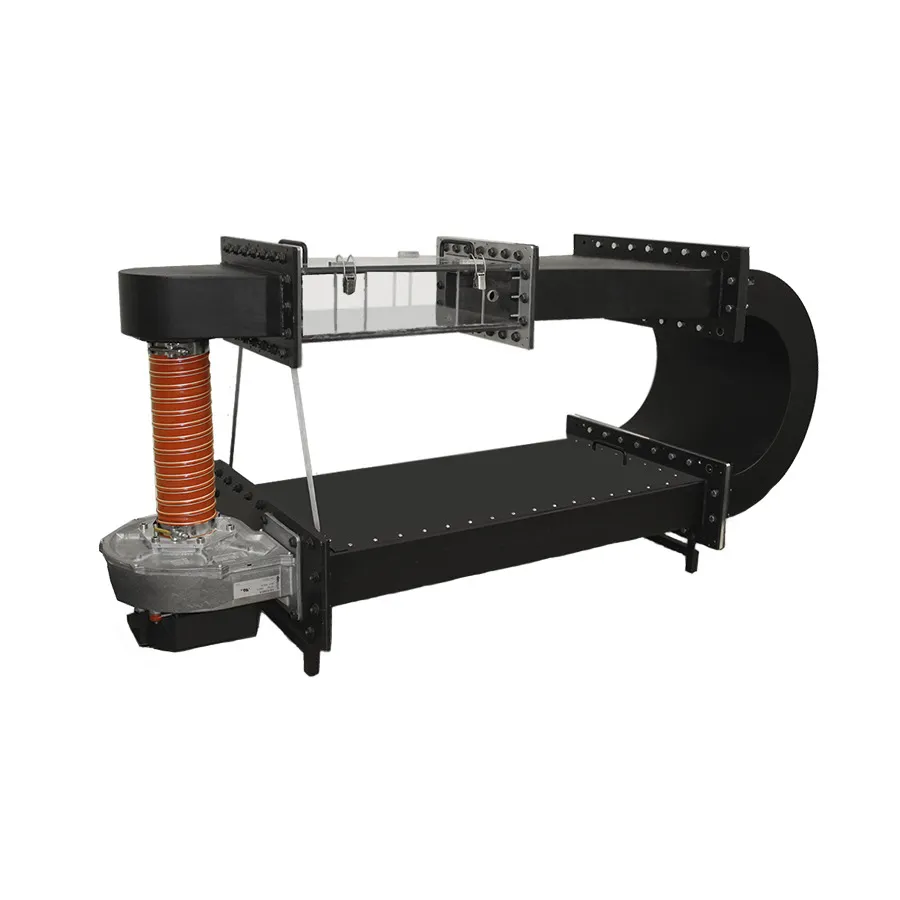

Advanced Thermal Solutions CLWT-067 Closed Loop Wind Tunnel
Request a quote
Advanced Thermal Solutions CLWT-067 is a closed-loop wind tunnel for thermal characterization of PCBs and components with temperature control up to 85°C.
Product details
| Model | CLWT-067 |
| Manufacturer | Advanced Thermal Solutions |
| Category | Wind Tunnels |
| Availability | Made to order |
Description
Overview
The CLWT-067 is a research-quality closed-loop wind tunnel system designed for thermal characterization of PCBs and individual components at controlled temperatures from ambient to 85°C. Unlike open-loop systems, the CLWT-067 recirculates internal air, allowing the system heater to quickly warm the air to a specific temperature. The test section provides precise control for heat sink performance testing and sensor calibration.
Key Features
- Six sensor ports for temperature and velocity measurements
- Airflow range: 1 to 7 m/s (200 to 1400 ft/min)
- Flow uniformity: ±1%
- Temperature range: ambient to 85°C (185°F)
- Temperature uniformity: ±1°C
- Power: 220VAC at 20 Amps
- Materials: Aluminum, Plexiglas, and Stainless Steel
- Test section dimensions: 43.1×25.0×8.9 cm (16.9×9.8×3.5 inch)
- Top-access door for easy specimen mounting and repositioning
- Optional internal rail guides for various specimen sizes
Applications
- Thermal characterization of PCBs and components
- Heat sink performance testing
- Air and temperature sensor calibration
- NEBS and other standards compliance testing
Specifications
| Product Type | Closed Loop |
| Number of Ports | 6 |
| Temperature Range | 85 C (185 F) |
