HDE DDVIP-138/K03 Voltage Indicator & Phasing Set
Request a quote
HDE DDVIP-138/K03 is a wireless voltage indicator and phasing set with dual display, measures 100V-138kV, and operates up to 100 ft (30m) apart.
Product details
| Model | DDVIP-138/K03 |
| Manufacturer | HDE |
| Category | Voltage Detectors |
| Availability | Made to order |
Description
Overview
The HDE DDVIP-138/K03 is a wireless voltage indicator and phasing set designed for overhead and underground power line applications. The dual display units automatically synchronize to provide clear in-phase and out-of-phase indication up to 100 ft (30m) apart, enabling safe and accurate voltage measurement and phase verification on high-voltage systems.
Key Features
- Dual display with automatic synchronization for phasing operations
- Measures voltage from 100V to 138kV line-to-line, 100V to 80kV line-to-ground
- Wireless operation up to 100 ft (30m) apart
- Clear in-phase and out-of-phase indication
- Capacitive Test Point and Peak Hold modes
- AC 50/60 Hz frequency rating
- Accuracy within 15%, dependent on geometry
Applications
- Overhead and underground voltage indication
- Phase relationship verification on power lines
- High-voltage system testing and troubleshooting
Specifications
| Height | 4.1" |

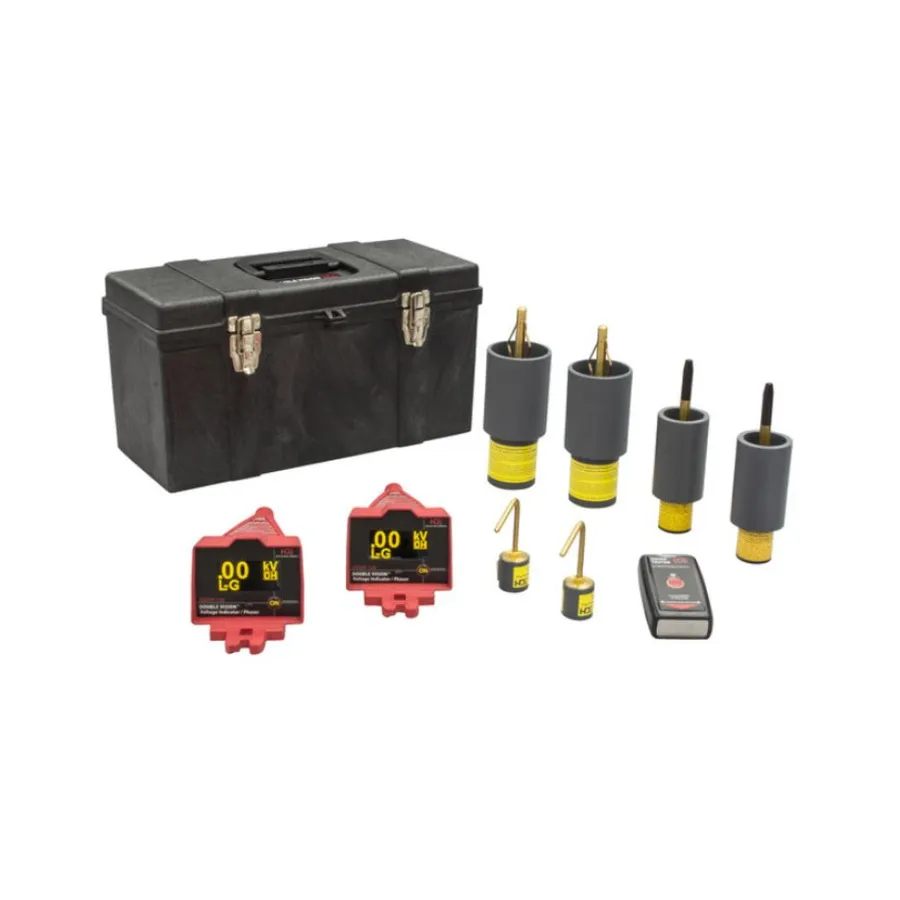

| Includes | DDVIP-138, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15-25 (2), ASP-35U 35kV UG Bushing Probe (2), PT-DDVIP Proof Tester, CS-DDVM Case |
| Length | 14" |
| Product Type | Voltage Indicator & Phasing Set |
| Series | DDVIP-138 Series |
| Temperature Range | - 20 to +120°F |
| Width | 4.6" |
