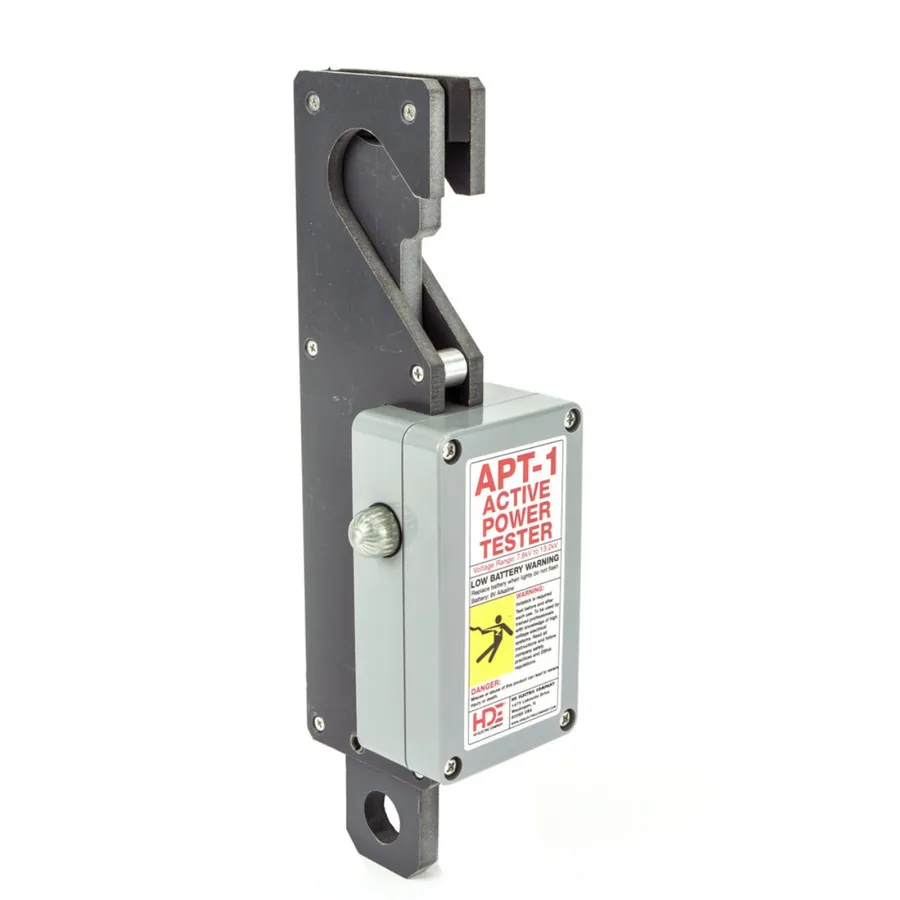

HDE APT-1 Voltage Detector
Request a quote
HDE APT-1 is an active power tester for detecting absence of voltage on overhead conductors from 7.6 to 13.2kV, with audible and visual alerts.
Product details
| Model | APT-1 |
| Manufacturer | HDE |
| Category | Voltage Detectors |
| Availability | Made to order |
Description
Overview
The HDE APT-1 is an active power tester designed to detect the absence of voltage on uninsulated overhead conductors rated from 7.6 to 13.2kV line-to-ground. It provides both audible and visual alerts to notify workers when voltage has been safely disconnected before work begins.
Key Features
- Detects absence of voltage on overhead conductors 7.6 to 13.2kV line-to-ground
- Audible alarm and flashing light indication
- Clamp stick installation for secure attachment
- Field replaceable 9V alkaline battery powered
- Available in different voltage range models
Applications
- Power line maintenance and repair work
- Electrical safety verification before overhead conductor work
- Utility and electrical contractor applications
Specifications
| Frequency Rating | 50/60 Hz |
| Length | 10.88" |
| Product Type | Voltage Detector |
| Voltage Rating | 7.6 - 13.2 kV |
