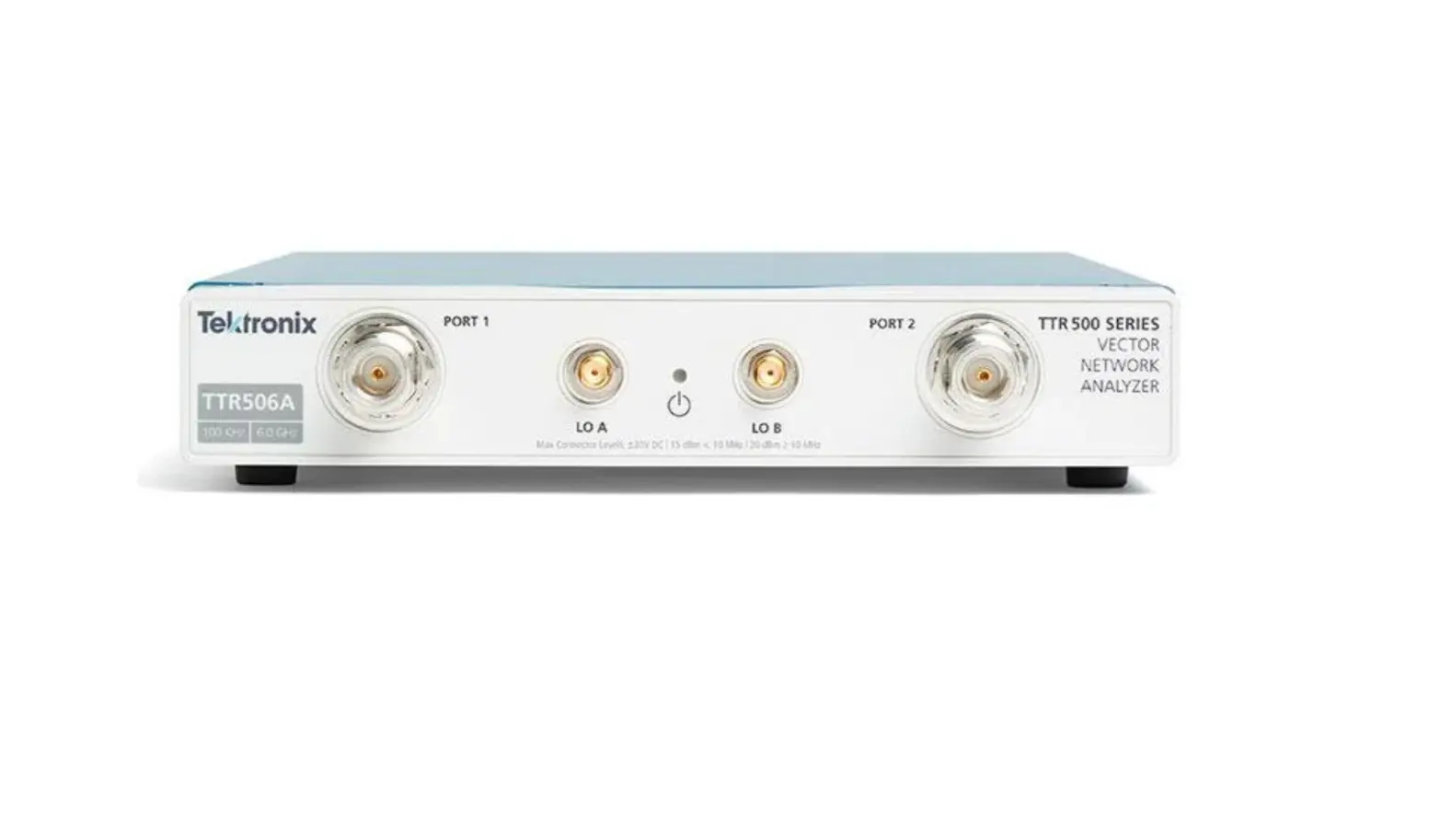

Tektronix TTR506A Vector Network Analyzer
Request a quote
Tektronix TTR506A USB Vector Network Analyzer, 100 kHz to 6 GHz with 122 dB dynamic range for comprehensive S-parameter and RF component measurements.
Product details
| Model | TTR506A |
| Manufacturer | Tektronix |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Tektronix TTR506A is a 2-port, 2-path USB Vector Network Analyzer delivering measurement performance and convenience for comprehensive VNA applications. It provides full S-parameter measurement capability (S11, S21, S12, S22) across a wide frequency range, making it ideal for filter measurements, antenna matching, amplifier characterization, and RF component validation.
Key Features
- Full 2-port 2-path S-parameter measurement in multiple formats
- Complete vector network analysis with Tektronix VectorVu-PC software
- Built-in bias tee on both ports for active device testing
- Windows API and LabView driver support
- Robust SCPI command interface compatible with current VNA models
- Touchstone file support for EDA simulation tools
- Offline simulation mode for S-parameter file analysis
- Three-year warranty
Key Performance Specifications
- Frequency Range: 100 kHz to 6 GHz
- Dynamic Range: Greater than 122 dB
- Output Power: -50 to +7 dBm
- Trace Noise: Less than 0.008 dB RMS
Applications
- Antenna matching and tuning
- RF component design and validation
- Filter and amplifier measurements
- RF cable and connector testing
- High-frequency circuit characterization
- Educational and research applications
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
