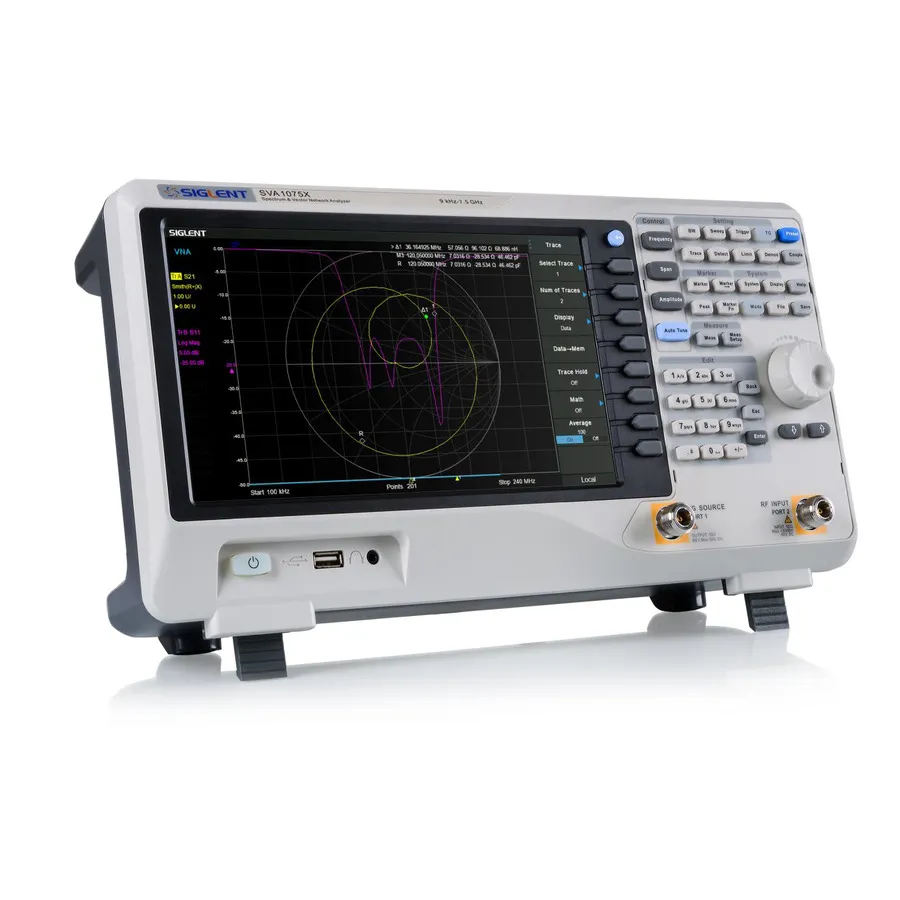

Siglent SVA1015X Spectrum and Vector Network Analyzer
Request a quote
Siglent SVA1015X combines spectrum analysis (9 kHz to 1.5 GHz) and vector network analysis with 10.1-inch touchscreen for RF circuit design and testing.
Product details
| Model | SVA1015X |
| Manufacturer | Siglent |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Siglent SVA1015X is a portable spectrum and vector network analyzer designed for RF signal analysis and network characterization. It combines spectrum analysis capabilities from 9 kHz to 1.5 GHz with vector network analysis from 100 kHz to 1.5 GHz, featuring a 10.1-inch multi-touch display and comprehensive measurement tools for RF circuit design, testing, and troubleshooting.
Key Features
- Spectrum analysis: 9 kHz to 1.5 GHz with <-99 dBc/Hz phase noise and <1.2 dB amplitude accuracy
- Vector network analysis: 100 kHz to 1.5 GHz with full S-parameter measurement
- 10.1-inch multi-touch display with mouse and keyboard support for intuitive operation
- Preamplifier and tracking generator included as standard features
- Multi-protocol remote control: SCPI, LabVIEW, IVI over USB TMC, VXI-11, Socket, and Telnet
- LAN, USB Device, and USB Host connectivity for flexible integration
- Web browser remote control for PC and mobile terminal access
Applications
- Broadcast monitoring and evaluation
- RF circuit design and verification
- Cable and antenna testing
- S-parameter measurement and characterization
- Site surveying and RF analysis
- Research and development
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 1.5 GHz |
| Minimum Frequency | 10 kHz |
| Type | Benchtop |
| Series | SVA1000X Series |
