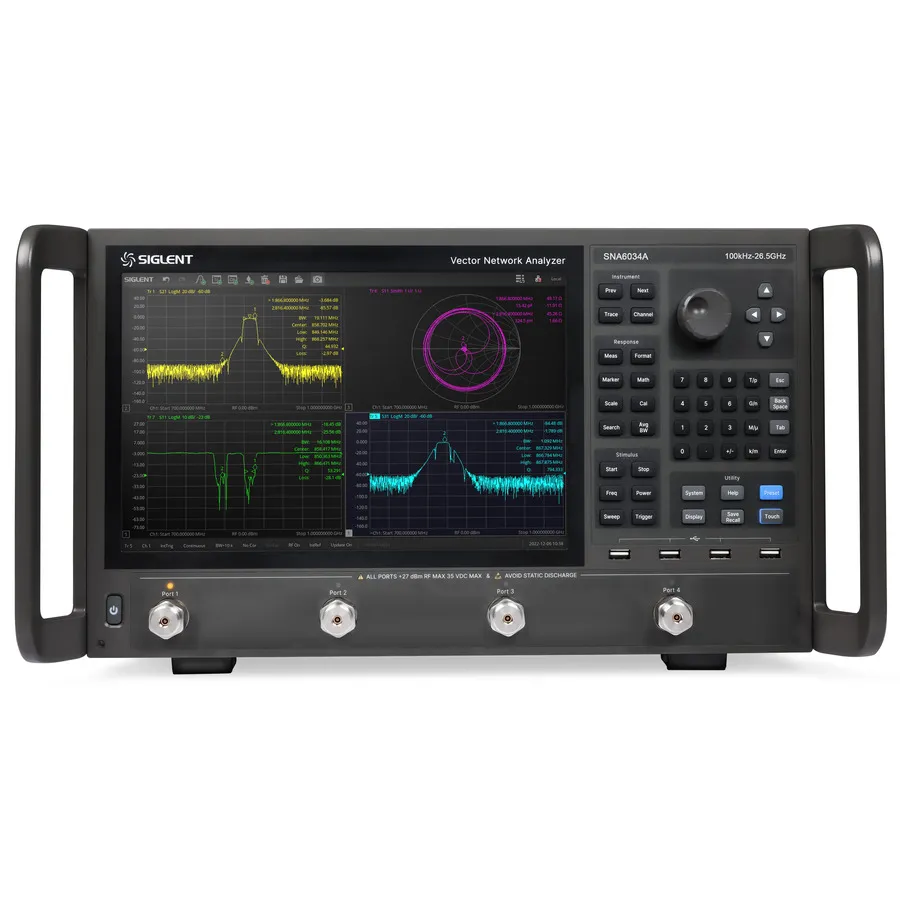

Siglent SNA6034A Vector Network Analyzer

Overview

The Siglent SNA6034A Vector Network Analyzer (VNA) is a versatile measurement instrument for RF and microwave applications, covering frequencies from 100 kHz to 26.5 GHz with 4-port measurement capability. It features a 135 dB dynamic range and supports 4-port scattering parameter and differential measurements, making it suitable for high-frequency multi-port component testing and network analysis in R&D and manufacturing environments.

The instrument features a 12.1-inch high-resolution color touchscreen display, LAN and USB connectivity with remote access capabilities, and support for SCPI, LabVIEW, and IVI control. It can store and recall measurements in multiple formats including S-parameter files (SnP), CSV, and image files.

Key Features

• Frequency range: 100 kHz to 26.5 GHz
• 4-port scattering parameter and differential measurements
• Dynamic range: 135 dB
• Level resolution: 0.05 dB
• Frequency resolution: 1 Hz
• Output level range: -55 dBm to +10 dBm
• IFBW range: 10 Hz to 3 MHz
• Five sweep types: Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time, Segment-Sweep
• Trace noise: 0.003 dBrms
• Up to 256 measurement channels and 64 test traces
• Video output: HDMI, DVI-D, DisplayPort

Applications

• High-frequency RF and microwave component characterization
• Millimeter-wave network and interconnect analysis
• Multi-port component testing and validation
• Filter design and validation (Q-factor, bandwidth, insertion loss)
• Impedance conversion and measurement plane adjustment
• Scattering parameter correction using SOLT, SOLR, TRL methods
• Manufacturing quality control and R&D testing

Included Accessories

• Quick start guide
• Power cable
• USB cable
• Calibration certificate
• Wireless mouse
• Protective cover
