Siglent SNA5004A Vector Network Analyzer
Request a quote
Siglent SNA5004A is a 4-port vector network analyzer covering 9 kHz to 4.5 GHz with 125 dB dynamic range and comprehensive calibration support.
Product details
| Model | SNA5004A |
| Manufacturer | Siglent |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

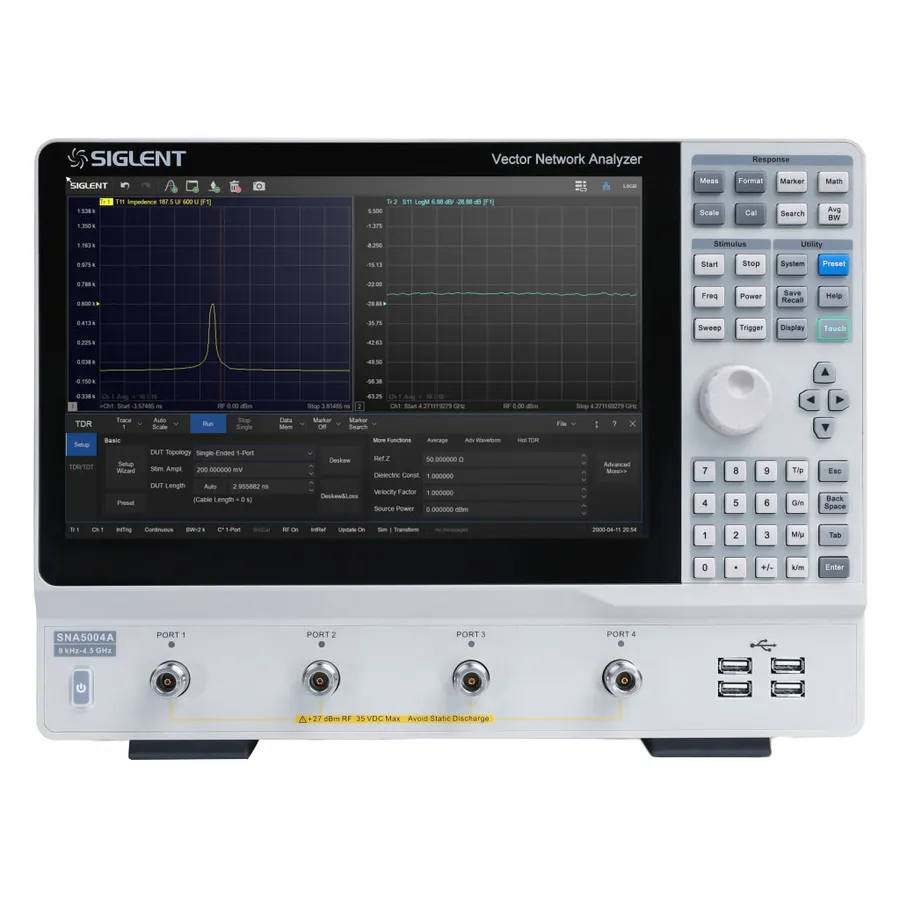

The Siglent SNA5004A is a 4-port vector network analyzer designed for RF and microwave testing. It operates from 9 kHz to 4.5 GHz and features a 12.1-inch touchscreen display with HDMI video output. The analyzer supports comprehensive measurements including scattering parameters, differential parameters, time-domain analysis, and advanced features like impedance conversion and fixture simulation.
Key Features
- Frequency range: 9 kHz to 4.5 GHz with 1 Hz resolution
- 4 ports with 125 dB dynamic range
- Output level range: -55 dBm to 10 dBm
- IF bandwidth: 10 Hz to 3 MHz
- 12.1-inch color touchscreen with HDMI output
- Multiple calibration types: Response, Enhanced Response, Full-port, TRL
- Internal Bias Tee connections
- Remote control via SCPI, Labview/IVI, USB-TMC, VXI-11, Socket, Telnet, and WebServer
- Multiple interfaces: LAN, USB Device, USB Host (USB-GPIB)
Applications
- RF and microwave component characterization
- Filter and amplifier design and testing
- Antenna and transmission line analysis
- Quality factor and insertion loss measurements
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 4.5 GHz |
| Minimum Frequency | 9 kHz |
| Type | Benchtop |
| Dynamic Range | 125 dB |
| Series | SNA5000A Series |
