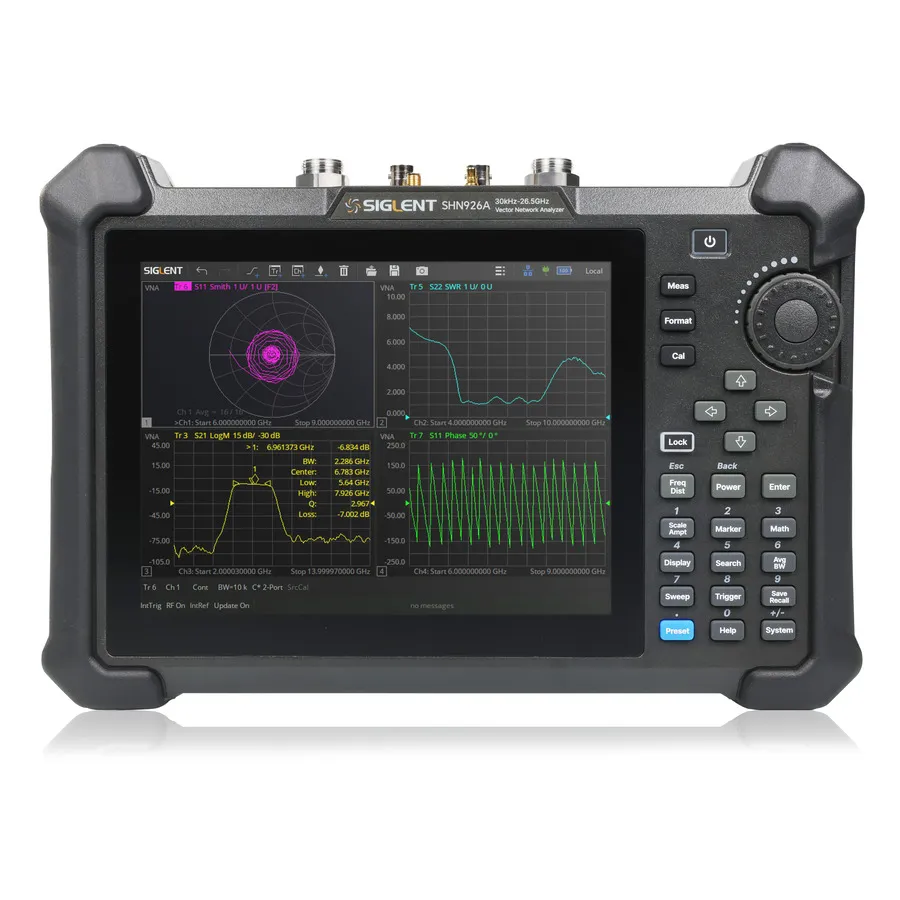

Siglent SHN926A Portable Vector Network Analyzer

Overview

The Siglent SHN926A is a portable vector network analyzer operating from 30 kHz to 26.5 GHz, designed for flexible field testing of RF components, cables, antenna systems, and transmission lines. Specifically engineered for R&D, production, maintenance, communications, and automotive electronics applications, the SHN926A facilitates measurements of 2-port scattering parameters, differential parameters, and time-domain analysis. It is an efficient tool for calculating Q-factor, bandwidth, and insertion loss of filters and other RF devices.

Key Features

• Frequency range: 30 kHz to 26.5 GHz
• 2-port vector network analyzer with scattering parameter measurements
• Standard CAT and DTF measurement modes
• Built-in DC bias-tee for external test objects
• GPS support for time and location information (with ANT-GPS1 antenna)
• Optional time domain analysis (TDA) and enhanced TDR via modules
• Optional spectrum analysis capability
• Li-ion battery with up to 4 hours of continuous operation
• 8.4-inch color touchscreen display
• Multiple interfaces: LAN, USB Device, USB Host (USB-GPIB)
• Remote control via SCPI, LabVIEW, IVI, USB-TMC, VXI-11, Socket, Telnet, and WebServer

Applications

• RF component characterization and filter analysis
• Cable and antenna testing in field environments
• Antenna base station diagnostics
• Transmission line measurements
• Production and manufacturing line testing
• Maintenance and troubleshooting of RF systems

Included Accessories

• SHN926A Vector Network Analyzer
• Quick Start Guide
• USB Type-C Cable
• Rechargeable Li-ion Battery
• AC/DC Adapter
• Portable carrying bag
