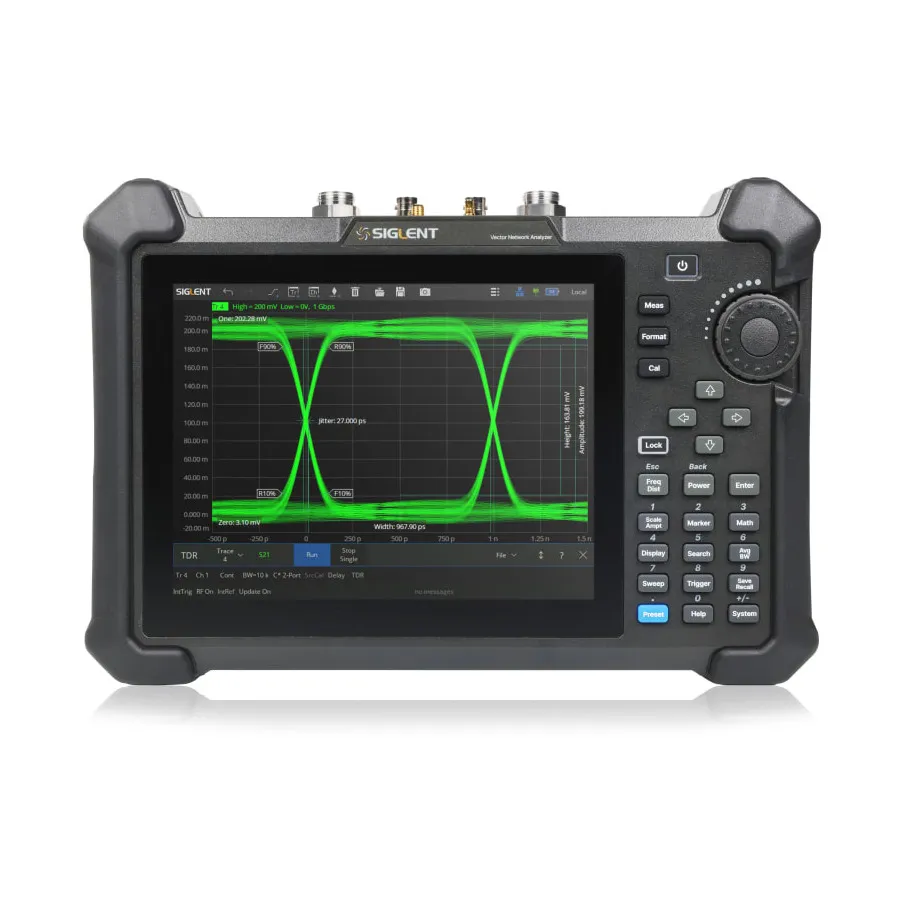

Siglent SHN914A Handheld Vector Network Analyzer

Overview

The Siglent SHN914A is a portable vector network analyzer operating from 30 kHz to 14 GHz. Designed for field and laboratory testing of RF components, cables, antennas, and base station systems, it combines comprehensive vector network analysis with optional time-domain and spectrum analysis capabilities.

Key Features

• Frequency range: 30 kHz to 14 GHz
• 2-port S-parameter measurements
• Differential parameters and time-domain parameter measurements
• Standard CAT/DTF cable and antenna testing
• Built-in bias-tee for external device testing
• 8.4-inch touchscreen display
• Li-ion battery with up to 4 hours runtime
• GPS capability for location and time tagging (antenna sold separately)
• Multiple sweep modes: linear frequency, log frequency, power sweep, CW-time, and segment sweep
• Advanced S-parameter corrections: SOLT, SOLR, TRL, Response, and Enhanced Response

Applications

• RF component characterization and testing
• Cable and antenna field measurement
• Filter Q-factor, bandwidth, and insertion loss analysis
• Research and development
• Production testing and quality control
• Field service and troubleshooting
• Communications system testing
• Antenna base station commissioning
• Automotive electronics testing

Included Accessories

• Quick Start Guide
• USB Type-C Cable
• Rechargeable Li-ion Battery
• AC/DC Adapter
• Portable Carrying Bag
