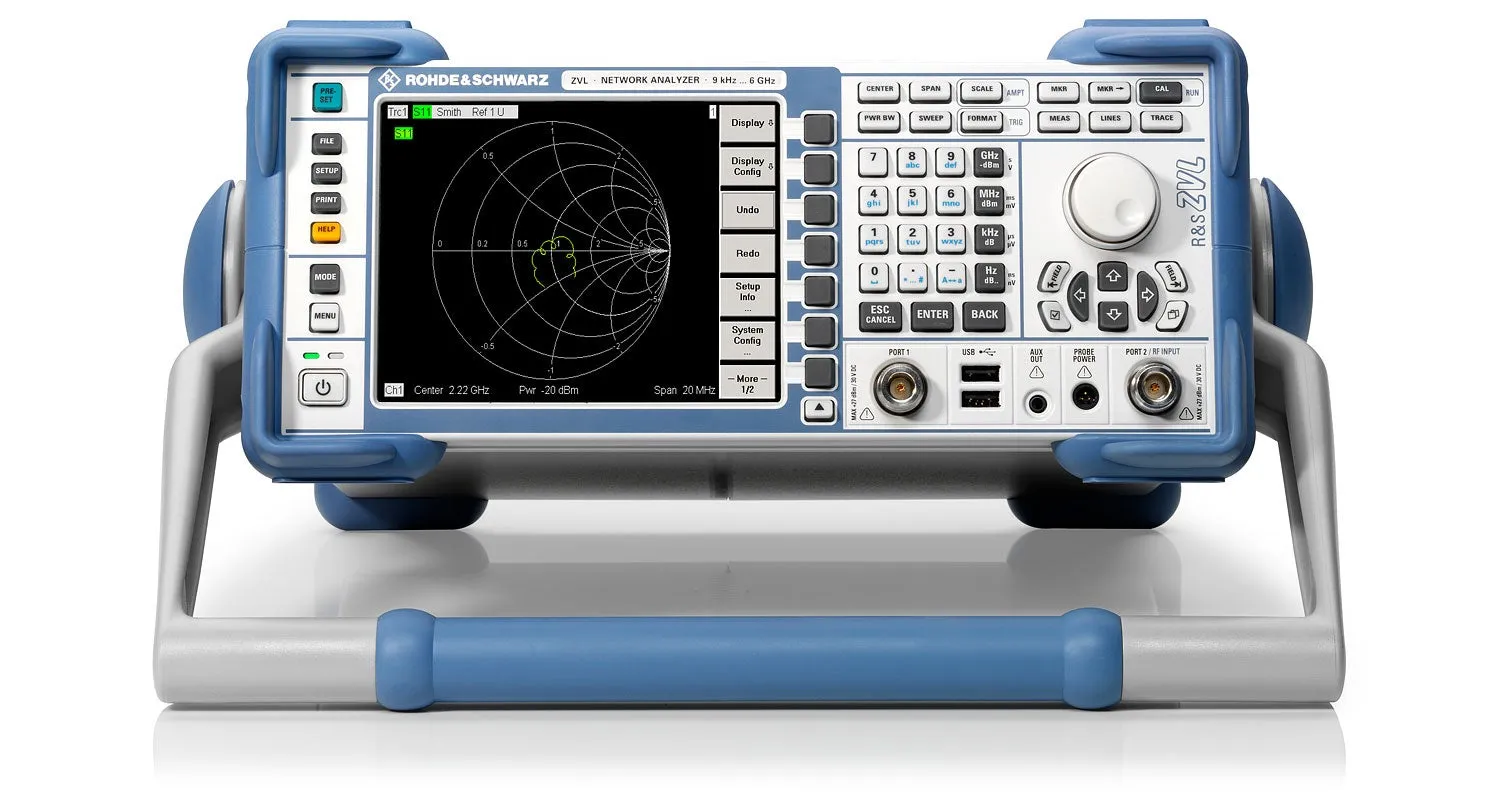

Rohde & Schwarz ZVL3 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZVL3 compact vector network analyzer covering 9 kHz to 3 GHz with 115+ dB dynamic range, multifunction capabilities, and portable design.
Product details
| Model | ZVL3 (1303.6509.03) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZVL3 is a compact, portable vector network analyzer combining the functions of a network analyzer, spectrum analyzer, and power meter in a single instrument. Operating from 9 kHz to 3 GHz with dynamic range exceeding 115 dB (typical 123 dB), it is ideal for development, production, and service applications where portability and multi-functional capability are essential. A 75 Ω version is available for TV and CATV applications.
Key Features
- Wide frequency range: 9 kHz to 3 GHz
- Dynamic range exceeding 115 dB, typical 123 dB
- Bidirectional test set displaying all four S-parameters
- Integrated spectrum analyzer option
- Accurate power measurement via NRP-Z power sensor series connectivity
- Compact size with weight less than 7 kg and depth of only 37 cm
- 12 V DC operation with internal battery for mobile deployment
- Integrated step attenuator for flexible testing
- High power handling capability
- External monitor connection support
Applications
- Component and circuit development and characterization
- Production testing and quality assurance
- Field service and maintenance
- S-parameter and transmission measurements
- Digital communications standards validation
- TV and CATV system testing (75 Ω version)
- Spectrum analysis and power measurements
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
