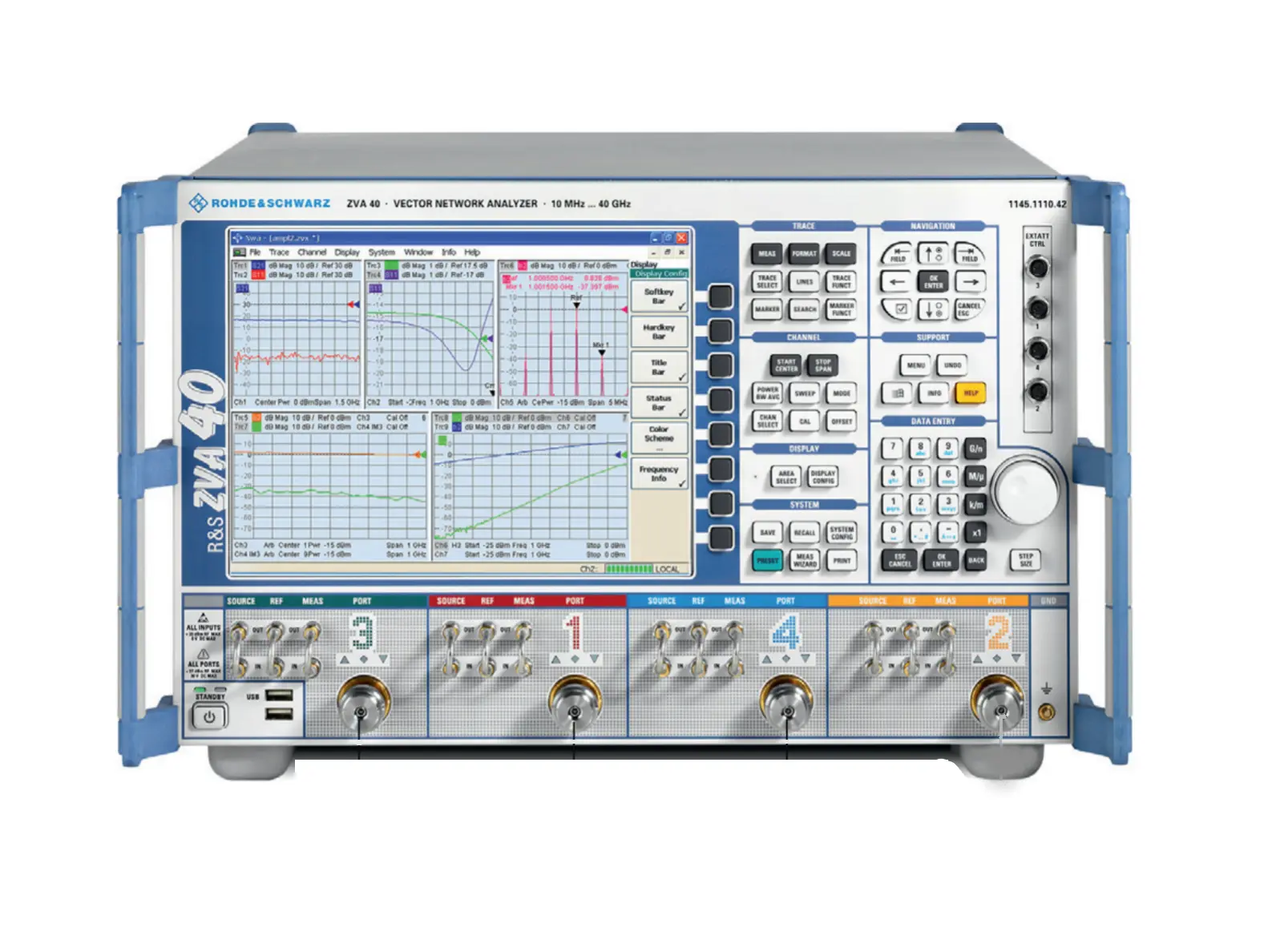

Rohde & Schwarz ZVA40 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZVA40 is a 40 GHz vector network analyzer with four ports, two sources, and dynamic range exceeding 140 dB for RF testing.
Product details
| Model | ZVA40 (1145.1110.42) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
Rohde & Schwarz ZVA40 is a 40 GHz vector network analyzer with four measurement ports (2.92 mm connectors) and two independent sources. Built for demanding RF and millimeter-wave applications, it combines the wide dynamic range and measurement speed necessary for comprehensive characterization from passive filtering to complex active device testing.
Key Features
- Frequency range 10 MHz to 40 GHz
- Four measurement ports with 2.92 mm connectors
- Two independent signal sources
- Dynamic range exceeding 140 dB
- Output power greater than 15 dBm
- Measurement speed less than 3.5 microseconds per point
- IF bandwidth selection: 1 MHz, 5 MHz, or 30 MHz
- Multiple calibration techniques: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM
- Automatic calibration units
- Linear and nonlinear measurements
- Noise figure characterization
- Pulse profile measurements with 12.5 nanosecond resolution
- True differential measurements for balanced ports
- Phase and group delay analysis
Applications
- Millimeter-wave component testing
- Amplifier characterization and validation
- Mixer and converter measurements
- Filter design at high frequencies
- Active device evaluation
- Production quality assurance
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.92mm-Male (Jack) |
| Form Factor | Benchtop |
