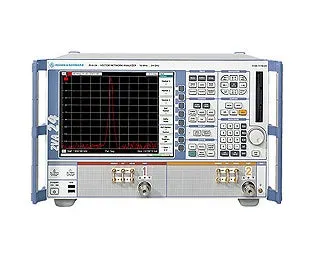

Rohde & Schwarz ZVA24 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZVA24 with four phase-coherent sources for fast two-tone measurements and advanced RF characterization to 24 GHz.
Product details
| Model | ZVA24 (1145.1110.28) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
Rohde & Schwarz ZVA24 with four sources is a 24 GHz vector network analyzer featuring four measurement ports and four phase-coherent signal sources. This configuration provides the measurement speed and flexibility essential for advanced RF and microwave characterization in both laboratory and high-volume production environments.
Key Features
- Frequency range 10 MHz to 24 GHz
- Four measurement ports with four phase-coherent sources
- Dynamic range exceeding 140 dB
- Output power greater than 15 dBm
- Measurement speed less than 3.5 microseconds per point
- IF bandwidth selection: 1 MHz, 5 MHz, or 30 MHz for pulsed measurements
- Fast two-tone measurements for amplifier and mixer testing
- Multiple calibration methods: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM
- Automatic calibration units
- Linear and nonlinear measurements
- Noise figure characterization
- Pulse profile measurements with 12.5 nanosecond resolution
- True differential measurements for balanced devices
- Phase and group delay analysis
Applications
- Two-tone and intermodulation measurements
- Nonlinear amplifier characterization
- Mixer and converter analysis
- Fast production testing with multiple sources
- Filter design and validation
- Receiver and transceiver evaluation
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 3.5mm-Male (Jack) |
| Form Factor | Benchtop |
