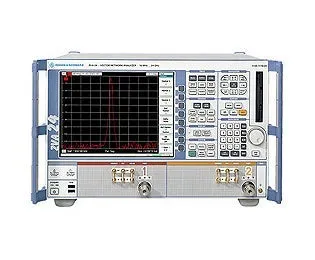

Rohde & Schwarz ZVA24 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZVA24 is a 24 GHz vector network analyzer with four ports, two sources, and dynamic range exceeding 140 dB for RF and microwave measurements.
Product details
| Model | ZVA24 (1145.1110.26) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
Rohde & Schwarz ZVA24 is a 24 GHz vector network analyzer designed for challenging RF and microwave measurements in laboratory and production environments. With four measurement ports and two independent sources, the ZVA24 delivers the dynamic range, speed, and measurement flexibility required for comprehensive characterization of passive and active components.
Key Features
- Frequency range 10 MHz to 24 GHz
- Four measurement ports with two signal sources
- Dynamic range exceeding 140 dB
- Output power greater than 15 dBm
- Measurement speed less than 3.5 microseconds per point
- IF bandwidth selection: 1 MHz, 5 MHz, or 30 MHz
- Multiple calibration methods: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM
- Automatic calibration units
- Linear and nonlinear measurements
- Noise figure characterization
- Pulse profile measurements with 12.5 nanosecond resolution
- True differential measurements for balanced active devices
- Phase and group delay analysis
Applications
- Filter design and production testing
- Amplifier characterization including nonlinear behavior
- Mixer and converter measurements
- Receiver and transceiver evaluation
- Active device characterization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 3.5mm-Male (Jack) |
| Form Factor | Benchtop |
