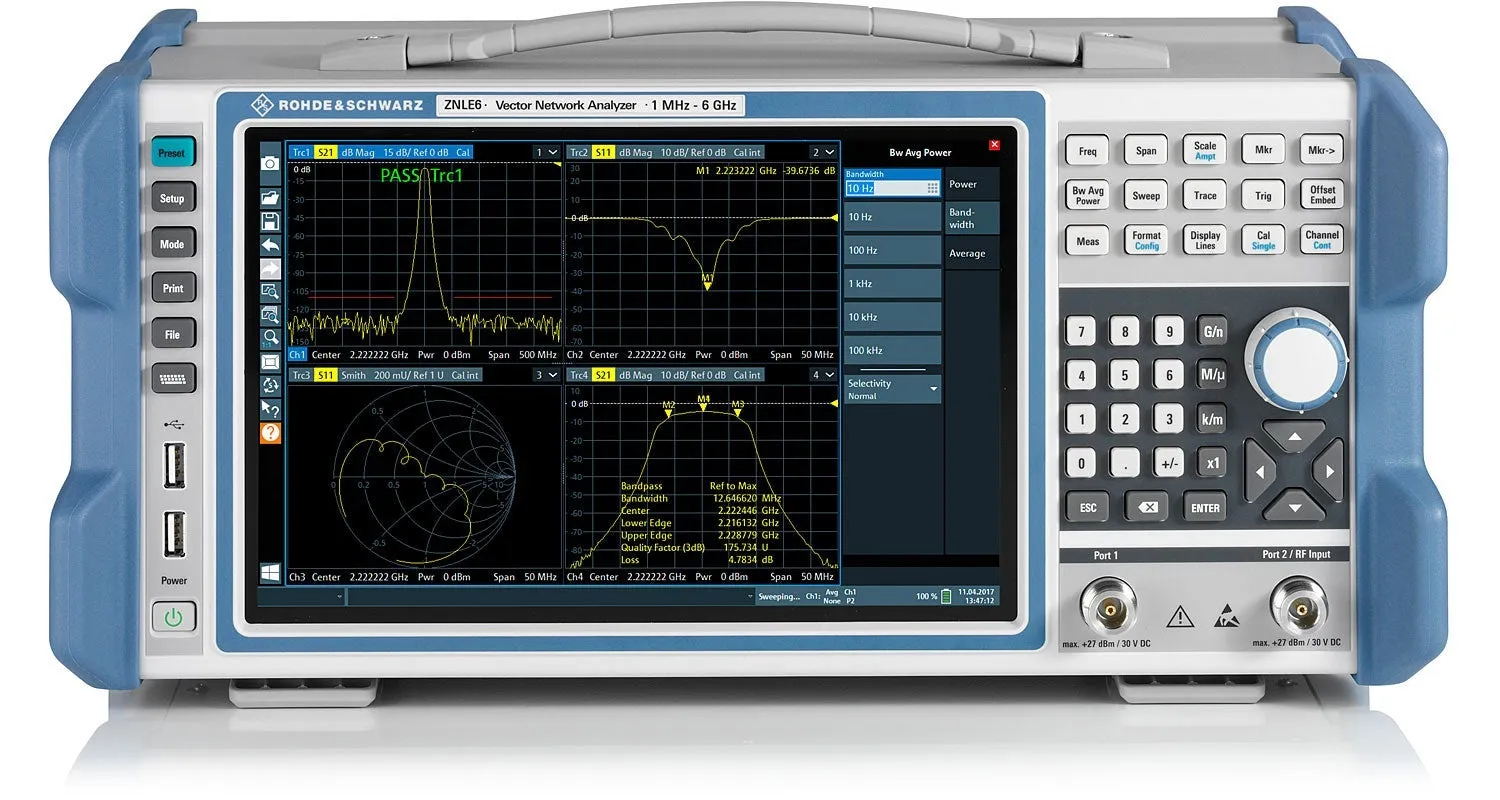

Rohde & Schwarz ZNLE6-COM Vector Network Analyzer

Overview

The Rohde & Schwarz ZNLE6-COM is a two-port vector network analyzer for accurate S-parameter measurements on passive components. It operates as a complete standalone instrument with an integrated Windows 10 PC platform, touchscreen display, and no requirement for external computers. The analyzer can begin measurements immediately after power-on without external calibration, though automatic calibration units are available for eliminating cable and adapter effects.

Key Features

• Frequency range from 1 MHz to 6 GHz (expandable to 100 kHz with ZNLE-B100 option)
• Two-port design with full S-parameter test set (S11, S21, S12, S22)
• Wide dynamic range of up to 120 dB
• Low trace noise of 0.001 dB at 10 kHz measurement bandwidth
• Measurement bandwidths from 1 Hz to 500 kHz for flexible trade-offs between speed and stability
• Fast measurements: 8.7 ms for 401 points at 100 kHz IFBW, 200 MHz span
• 10.1" WXGA touchscreen with intuitive user interface
• Compact design: 24 cm depth, 6 kg weight, solid-state storage for fast boot times

Applications

• Antenna systems installation and maintenance
• Cable and connector characterization
• Passive filter and matching network design
• Component validation and quality assurance
• On-site field measurements and troubleshooting
• Production testing environments

Optional Accessories

• ZNLE-B100: Extended frequency range to 100 kHz
• FPL1-B10: GPIB interface for remote control and automation
• ZNL-K2: Time domain analysis option
• ZNL-K3: Distance-to-fault measurements option
• ZN-Z135: Calibration kit
