Rohde & Schwarz ZNLE6 Vector Network Analyzer
Request a quote

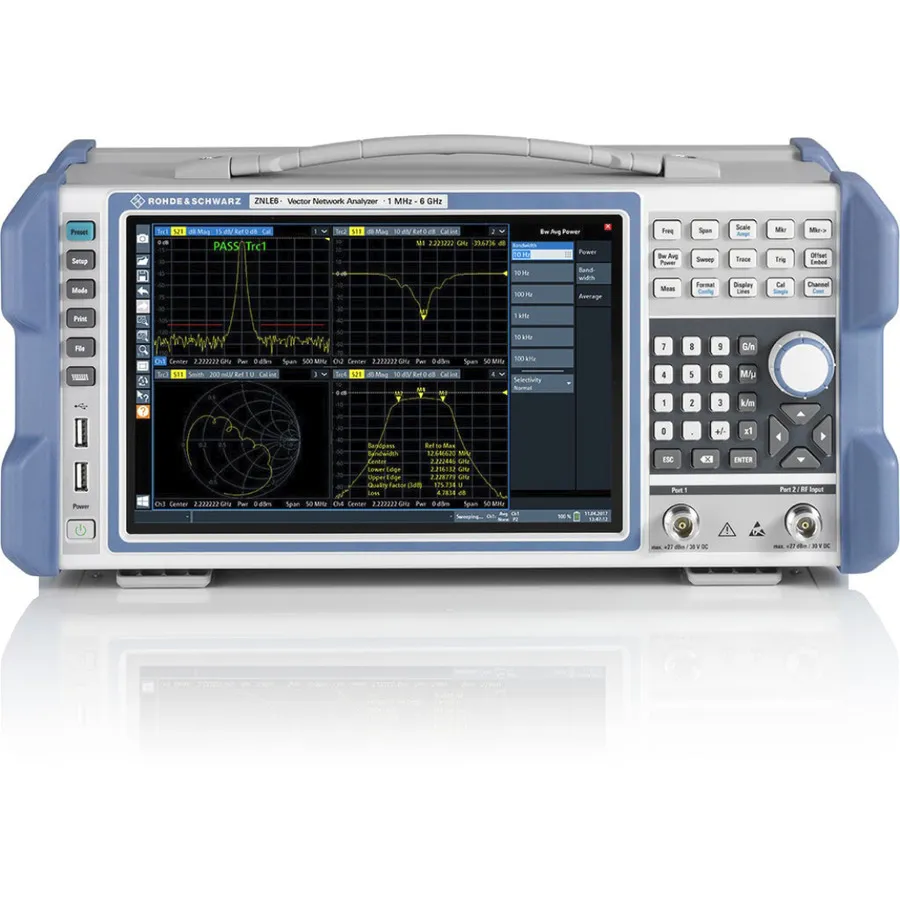

Rohde & Schwarz ZNLE6 is a two-port vector network analyzer with 1 MHz to 6 GHz frequency range, 120 dB dynamic range, and standalone Windows 10 operation.
Product details
| Model | ZNLE6 |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNLE6 is a two-port vector network analyzer for S-parameter measurements on passive components up to 6 GHz. It features standalone operation with an integrated Windows 10 PC platform, requiring no external computer or display. Measurements can begin immediately after power-on.
Key Features
- Frequency range from 1 MHz to 6 GHz (expandable to 100 kHz with ZNLE-B100 option)
- Full S-parameter test set for bidirectional measurements (S11, S21, S12, S22)
- Dynamic range of up to 120 dB with low trace noise of 0.001 dB at 10 kHz bandwidth
- Measurement bandwidths from 1 Hz to 500 kHz
- Fast measurement capability: 8.7 ms for 401 points at 100 kHz IFBW, 200 MHz span
- 10.1" WXGA touchscreen with intuitive interface
- Compact design: 24 cm depth, 6 kg weight
Applications
- Cable and connector testing
- Passive component characterization
- Filter and matching network design and validation
- Antenna and transmission line analysis
- Quality assurance and production testing
Optional Accessories
- ZNLE-B100: Extended frequency range to 100 kHz
- FPL1-B10: GPIB interface for remote control
- ZNL-K2: Time domain analysis
- ZNL-K3: Distance-to-fault measurements
Specifications
