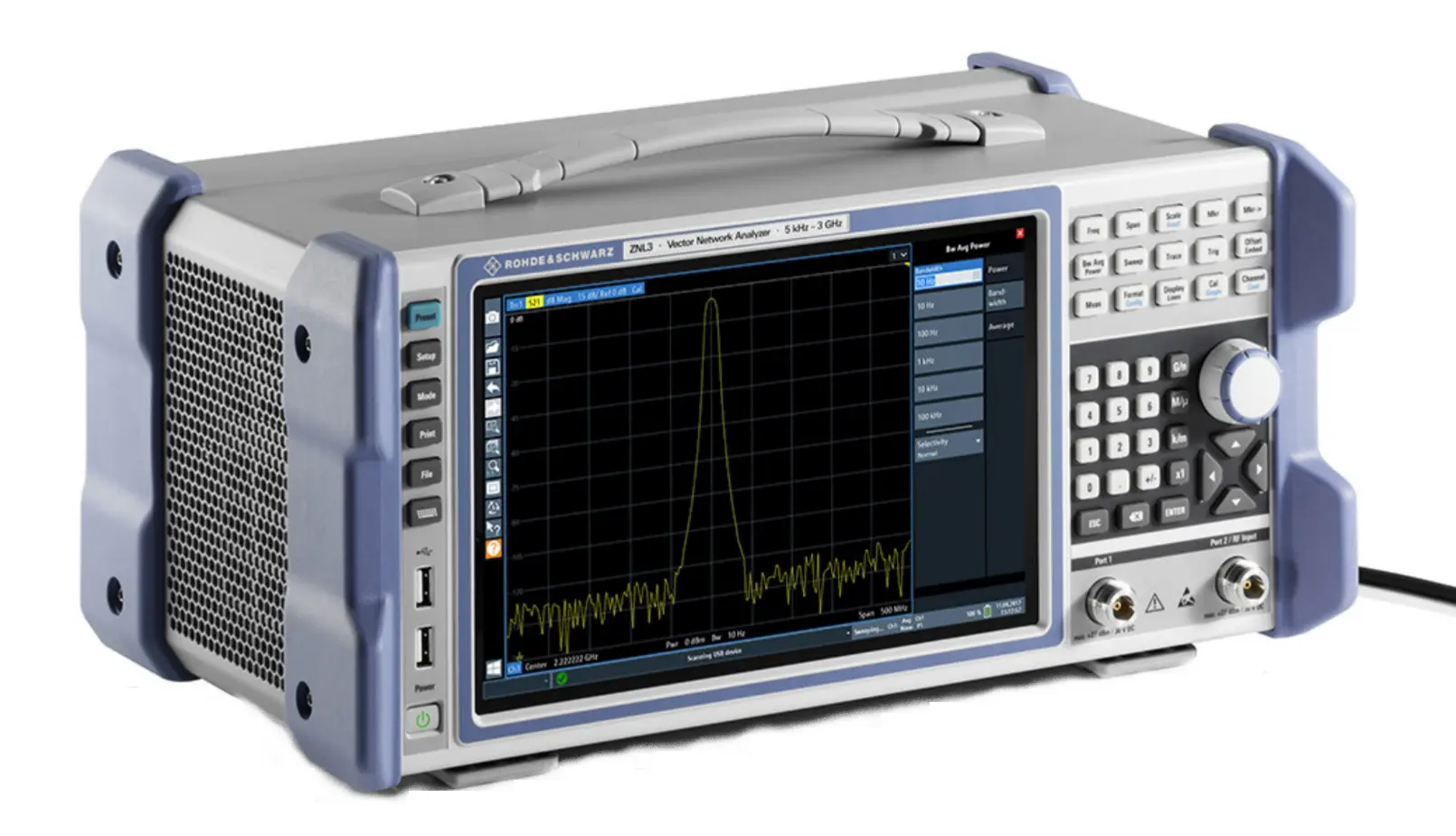

Rohde & Schwarz ZNL6-COM Vector Network Analyzer Bundle
Rohde & Schwarz ZNL6-COM promotional bundle features ZNL6 base unit with integrated spectrum analyzer, extended power range (–40 to +3 dBm), and calibration kit.
Product details
| Model | ZNL6-COM (1323.0012P08) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNL6-COM is a promotional bundle combining the ZNL6 base vector network analyzer with essential options and accessories. It includes the fully integrated spectrum analyzer option, extended power range module, and a calibration kit, providing a comprehensive measurement solution for RF and microwave applications.
This bundle covers frequencies from 5 kHz to 6 GHz with enhanced capabilities out of the box. The extended power range extends output capability to –40 dBm, while the integrated spectrum analyzer adds independent frequency domain analysis. The included calibration kit ensures measurement accuracy and traceability from deployment.
Key Features
- ZNL6 base unit: 2-port vector network analyzer, 5 kHz to 6 GHz
- Fully integrated spectrum analyzer option (up to 6 GHz)
- Extended power range module: output from –40 dBm to +3 dBm
- Included ZN-Z135 calibration kit for measurement accuracy
- Multitouch user interface with intuitive display
- Wide dynamic range: typical 130 dB
- Measurement bandwidths: 1 Hz to 500 kHz
- Compact portable design: 6–8 kg weight
- Optional battery pack for field operations
- Windows 10 operating system
Applications
- RF component characterization and verification
- Antenna and transmission line measurements
- Filter and amplifier testing
- Microwave subsystem development
- Field service and troubleshooting
- Educational and research laboratory use
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
