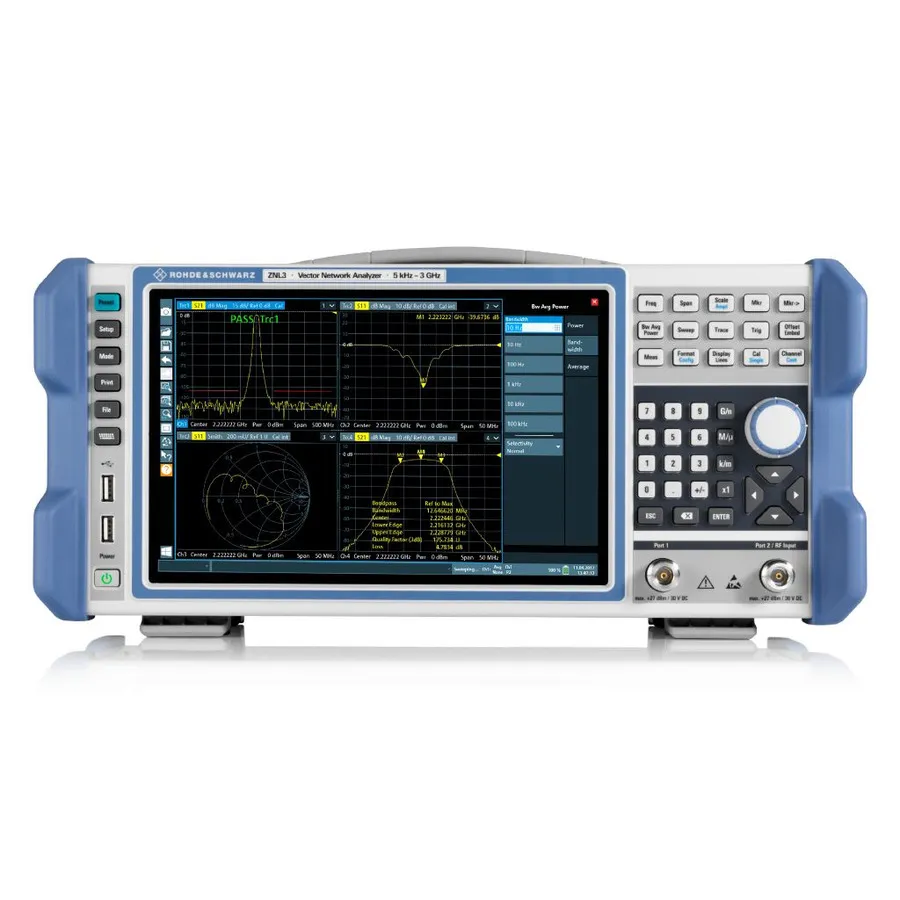

Rohde & Schwarz ZNL3 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNL3 is a compact 2-port vector network analyzer, 5 kHz to 3 GHz, Type-N connectors, 130 dB dynamic range, with optional battery pack.
Product details
| Model | ZNL3 |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNL3 is a compact two-port vector network analyzer designed for laboratory, field service, and production environments. It covers frequencies from 5 kHz to 3 GHz and offers flexible options including spectrum analyzer capability and extended power range, making it suitable for a wide range of RF and microwave applications.
Key Features
- Two-port vector network analyzer for bidirectional measurements
- Frequency coverage 5 kHz to 3 GHz
- Type-N female connectors
- Wide dynamic range of typical 130 dB
- Output power range from –40 dBm to typical +3 dBm
- Measurement bandwidths from 1 Hz to 500 kHz
- Fast measurements: 16.7 ms for 401 points
- Compact size and low weight (approximately 6 kg)
- Multitouch screen interface
- Optional battery pack for portable field use
- Windows 10 operating system
Applications
- Component characterization and impedance measurements
- Antenna and transmission line testing
- Filter and amplifier design validation
- Field service and on-site troubleshooting
- Production testing and quality assurance
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 3 GHz |
| Minimum Frequency | 5 kHz |
| Type | Benchtop |
| Series | ZN-L Series |
| Alternate Product Number | 1323.0012.03 |
