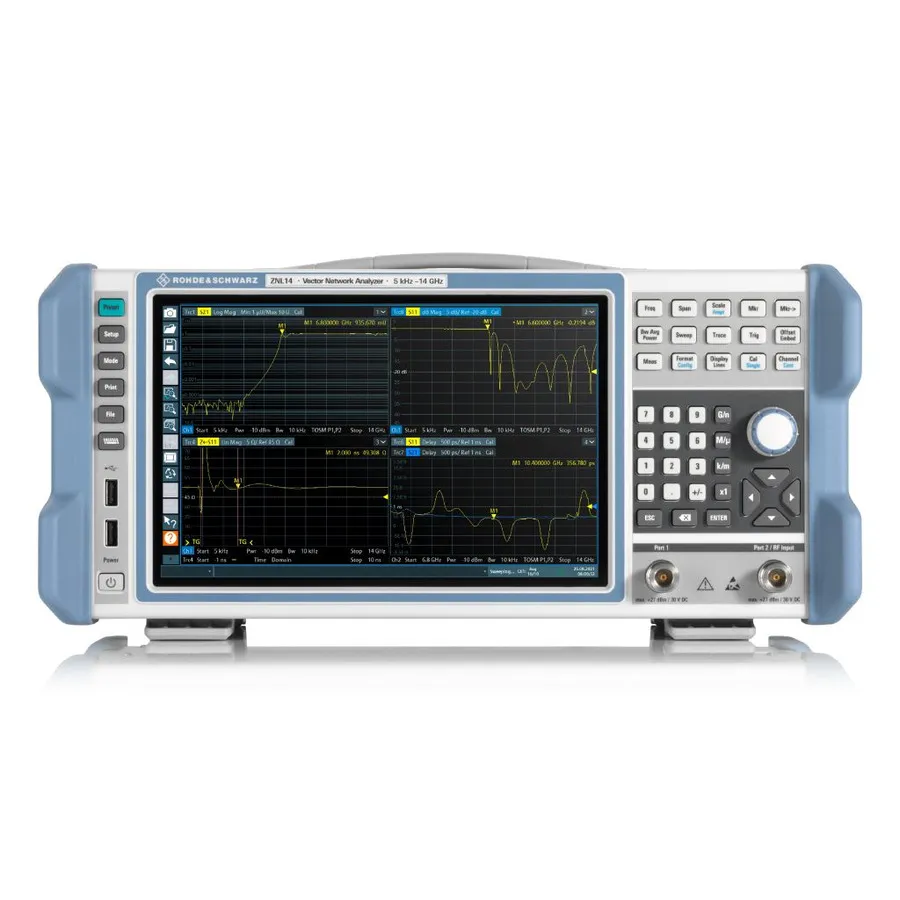

Rohde & Schwarz ZNL14 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNL14 is a portable 2-port vector network analyzer, 5 kHz–14 GHz, with 130 dB dynamic range and optional battery for field measurements.
Product details
| Model | ZNL14 |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNL14 is a portable 2-port vector network analyzer designed for RF and microwave circuit characterization across 5 kHz to 14 GHz. It combines measurement precision with a compact form factor, making it suitable for benchtop testing as well as field deployment with optional battery power.
Key Features
- Two-port vector network analyzer for S-parameter and impedance measurements
- Frequency range: 5 kHz to 14 GHz with Type-N female connectors
- Dynamic range of typ. 130 dB
- Output power range from –40 dBm to typ. +3 dBm
- Measurement bandwidths from 1 Hz to 500 kHz
- Multitouch display interface
- Compact design with low weight (6–8 kg)
- Optional battery pack for portable operation
- Windows 10 operating system
Applications
- RF and microwave circuit design and verification
- PCB and component characterization
- Field measurements and troubleshooting
- Manufacturing test and quality assurance
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 14 GHz |
| Minimum Frequency | 5 kHz |
| Type | Benchtop |
| Series | ZN-L Series |
| Alternate Product Number | 1323.0012.14 |
