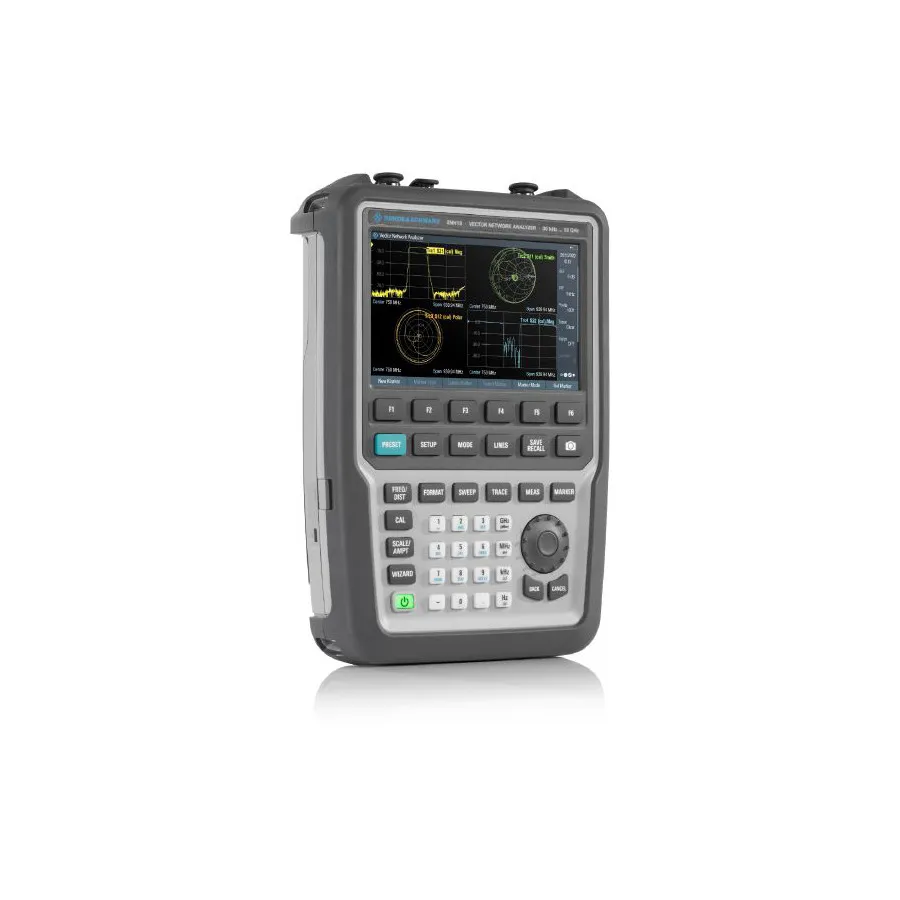

Rohde & Schwarz ZNH8 Handheld Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNH8 portable vector network analyzer with 30 kHz to 8 GHz frequency range, two-port S-parameter capability, and touchscreen interface for comprehensive RF system testing.
Product details
| Model | ZNH8 |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNH8 is a portable two-port handheld vector network analyzer designed for field RF testing applications requiring extended frequency coverage. With a frequency range from 30 kHz to 8 GHz, the ZNH8 covers a wider range than the ZNH4, making it suitable for testing higher-frequency components and systems. The device combines portable operation with professional RF measurement capabilities, featuring a touchscreen interface and compact, rugged design.
Key Features
- Frequency range from 30 kHz to 8 GHz
- Two-port S-parameter measurements (S11, S12, S21, S22)
- One-port cable and antenna measurements
- 100 dB (typ.) dynamic range for precision measurements
- Non-reflective capacitive touchscreen display
- Rugged, IP51-rated housing for field operations
- Four-receiver architecture with advanced calibration support
- Low trace noise for high-resolution measurements
- Adjustable receiver step attenuator at both ports
- Remote control via PC, Android, and iOS applications
- Measurement wizard for test automation
Applications
- RF communications system testing and maintenance
- Higher-frequency component characterization (up to 8 GHz)
- Cable loss and impedance measurements
- Antenna characterization and tuning
- Field diagnostics and troubleshooting
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 8 GHz |
| Minimum Frequency | 30 kHz |
| Type | Handheld |
| Series | ZN-H Series |
| Alternate Product Number | 1321.1611.08 |
