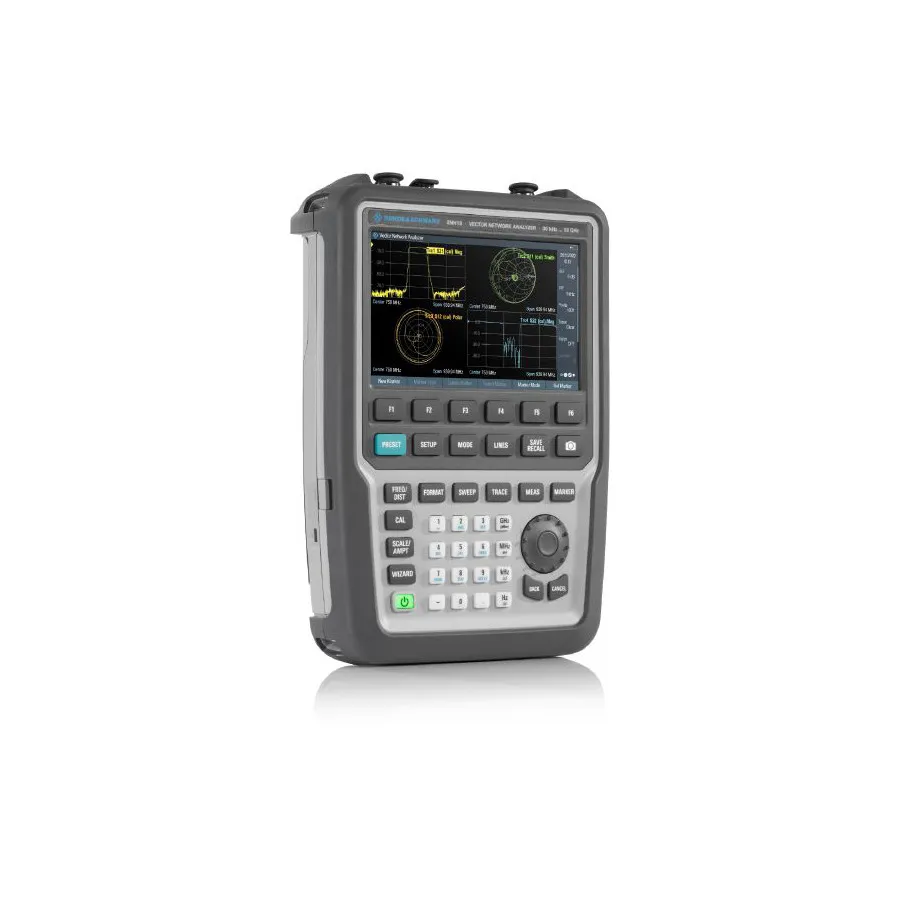

Rohde & Schwarz ZNH4 Handheld Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNH4 portable vector network analyzer with 30 kHz to 4 GHz frequency range, two-port S-parameter measurements, and touchscreen interface for RF component and cable testing.
Product details
| Model | ZNH4 |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNH4 is a portable two-port vector network analyzer designed for on-site RF testing and cable characterization. With a frequency range from 30 kHz to 4 GHz, the ZNH4 is well-suited for lower-frequency RF applications including cellular systems, Wi-Fi, and component testing. Its compact, rugged design with touchscreen interface makes it ideal for field service engineers and technicians working on RF communications systems.
Key Features
- Frequency range from 30 kHz to 4 GHz
- Two-port S-parameter measurements (S11, S12, S21, S22)
- One-port cable and antenna measurements
- 100 dB (typ.) dynamic range for high-resolution measurements
- Rugged, IP51-rated housing with capacitive touchscreen
- Four-receiver architecture for advanced calibration methods
- Measurement wizard for simplified testing procedures
- Remote control via PC, Android, and iOS applications
Applications
- Cellular and mobile network component testing
- Wi-Fi antenna and filter characterization
- RF cable loss and return loss measurements
- Component impedance matching
- On-site system installation and verification
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 4 GHz |
| Minimum Frequency | 30 kHz |
| Type | Handheld |
| Series | ZN-H Series |
| Alternate Product Number | 1321.1611.04 |
