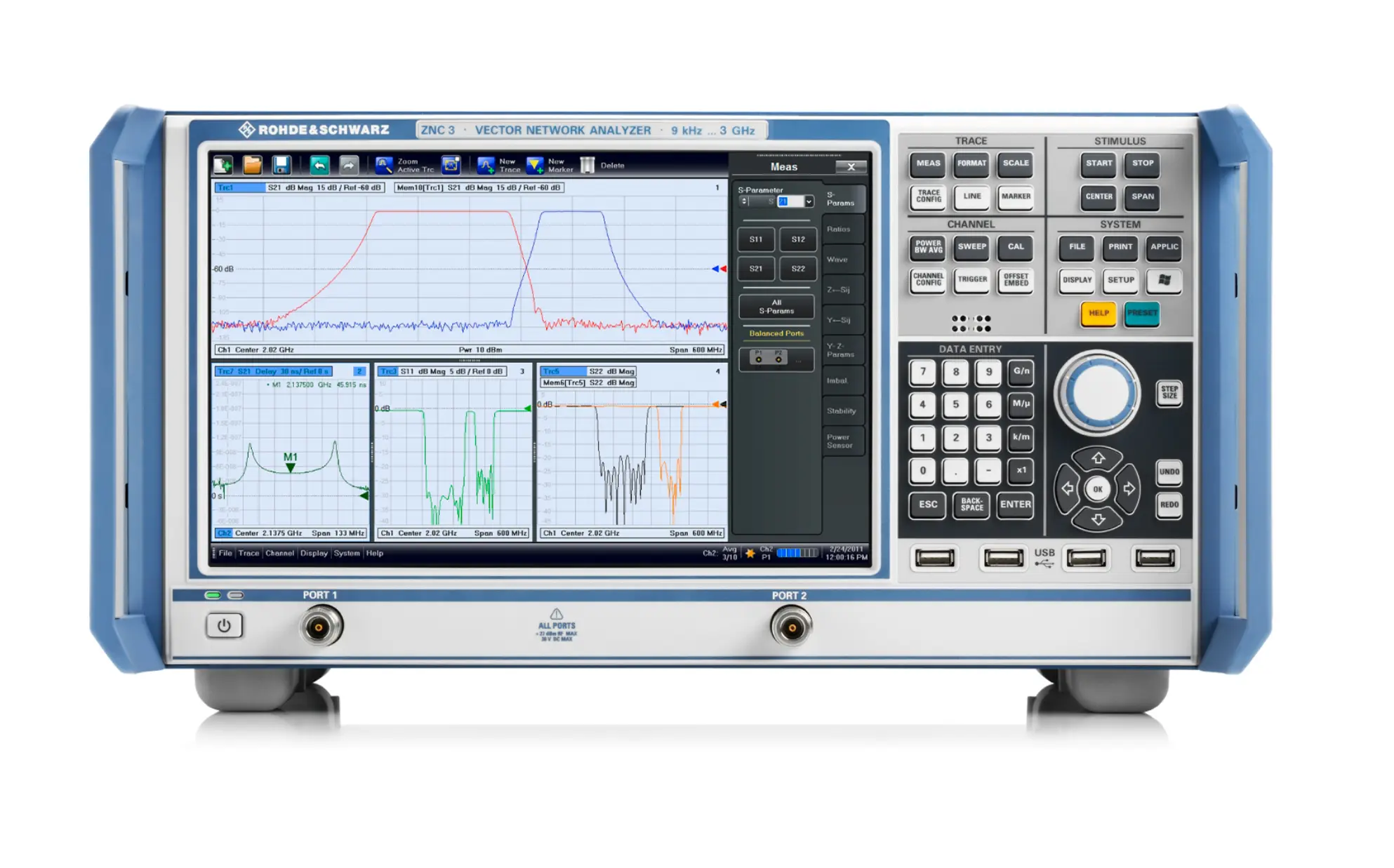

Rohde & Schwarz ZNC3 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNC3 vector network analyzer covers 9 kHz to 3 GHz with 130 dB dynamic range, 11 ms sweep times, and large touchscreen display for RF component development.
Product details
| Model | ZNC3 (1311.6004.12) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNC3 is a three-port vector network analyzer covering the frequency range from 9 kHz to 3 GHz. It is designed for applications in mobile radio and electronic goods industries, making it ideal for developing, producing, and servicing RF components such as filters and cables.
Key Features
- Frequency range: 9 kHz to 3 GHz
- Dynamic range up to 130 dB
- Short sweep times (11 ms for 401 points)
- High temperature stability (typ. 0.01 dB/°C)
- Wide power sweep range: −50 dBm to +13 dBm
- IF bandwidths from 1 Hz to 300 kHz
- Manual and automatic calibration
- Low trace noise (0.004 dB RMS at 10 kHz IF bandwidth)
- Large high-resolution 12.1" touchscreen display
Applications
- Mobile radio component testing and development
- RF filter development and service
- Cable testing and characterization
- Electronic goods component validation
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
