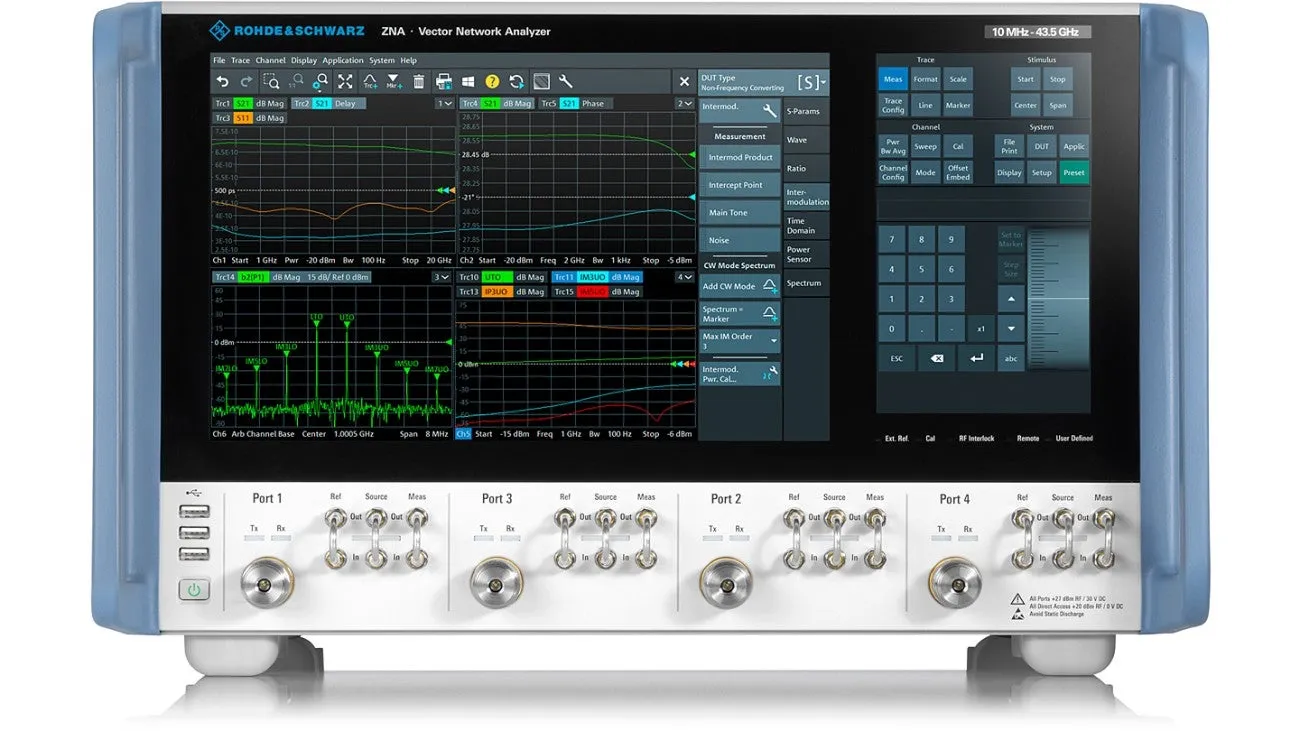

Rohde & Schwarz ZNA67 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNA67 is a 4-port vector network analyzer with 10 MHz to 67 GHz coverage and exceptional RF stability for high-precision component characterization.
Product details
| Model | ZNA67 (1332.4500.64) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNA67 is a premium vector network analyzer designed for high-end RF and microwave measurements. It combines exceptional RF performance with a unique hardware architecture and intuitive touch-based operation, making it ideal for characterizing both active and passive devices in development and production environments.
Key Features
- Frequency range: 10 MHz to 67 GHz with 4 ports
- Exceptional RF stability, low trace noise, and excellent raw system data
- Four internal, phase-coherent sources for flexible frequency control and mixer phase measurements
- Two internal LO sources with multichannel receiver architecture for advanced measurements
- Pulse generators and modulators with comprehensive trigger and synchronization capabilities
- Touch-only operation with dual independent touchscreens for efficient control
- DUT-centric approach that adapts to user requirements and optimizes settings
- Wide dynamic range and high accuracy suitable for metrology applications
Applications
- Component development and characterization in aerospace and defense sectors
- Satellite component and module production
- RF component testing (amplifiers, mixers, filters, connectors, cables)
- Active and passive device characterization
- Intermodulation and mixer measurements without external signal generators
- Metrology-grade measurements with high accuracy and stability
Specifications
| High Frequency (range) | 50GHz <= 85GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Form Factor | Benchtop |
