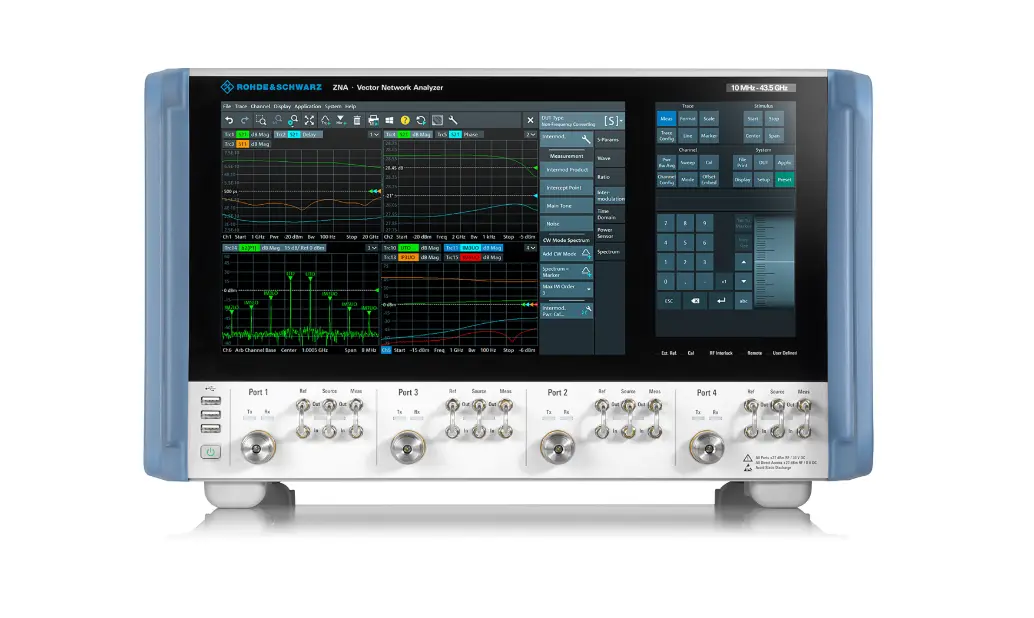

Rohde & Schwarz ZNA50 Vector Network Analyzer
Request a quote
Rohde & Schwarz ZNA50 4-port vector network analyzer with 10 MHz to 50 GHz frequency coverage, exceptional RF performance, outstanding stability, and intuitive touch-based operation.
Product details
| Model | ZNA50 (1332.4500.54) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNA50 is a premium 4-port vector network analyzer from the high-end ZNA series. Operating from 10 MHz to 50 GHz with 2.4 mm connectors, it combines exceptional RF performance with a unique touch-based operational concept. The instrument features outstanding stability, low trace noise, and excellent raw system data, making it ideal for development and production applications requiring high accuracy in aerospace, defense, and satellite component characterization.
Key Features
- Frequency range: 10 MHz to 50 GHz with 2.4 mm connectors
- 4-port configuration
- Up to four internal, phase-coherent sources for flexible signal control
- Up to eight independent receivers for multi-channel phase measurements
- Two independent touchscreens with drag-and-drop interface
- Wide dynamic range for characterizing high-blocking devices
- DUT-centric approach with automatic settings optimization
- Optional software packages for spectrum analysis, time domain analysis, and mixer measurements
Applications
- Development and production of RF and microwave components
- Passive and active device characterization
- Aerospace and defense component testing
- Satellite communication systems
- High-accuracy metrology
Included Accessories
- Mechanical calibration and verification kits
- Test cables and torque wrenches
- NRP power sensor family support
Specifications
| ZNA50 | 1332.4500.544 ports10 MHz to 50 GHz2.4 mm(m) |
