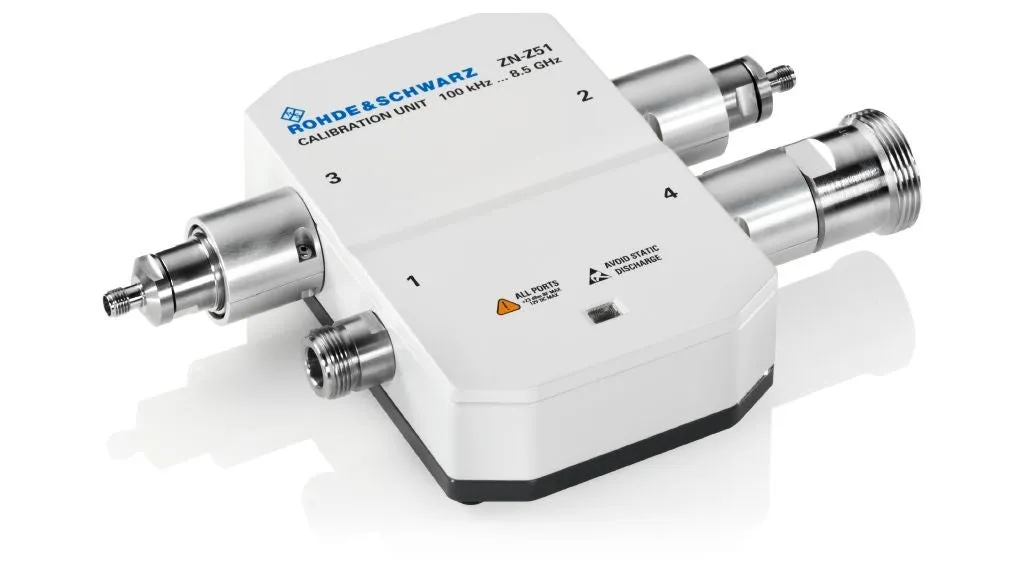

Rohde & Schwarz ZN-Z51 (1319.5507.74) Automatic Calibration Unit
Request a quote
Rohde & Schwarz ZN-Z51 automatic VNA calibration unit with 4 configurable ports (N, 3.5mm, 7/16, 4.3-10), 100 kHz–8.5 GHz, USB control.
Product details
| Model | ZN-Z51 (1319.5507.74) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZN-Z51 (1319.5507.74) is a flexible automatic calibration unit for vector network analyzers. This 4-port model features N-type female connectors that are individually configurable—each port can be permanently adapted to N (m/f), 3.5 mm (m/f), 7/16 (m/f), or 4.3-10 (f) connectors. It operates from 100 kHz to 8.5 GHz and supports multiport calibration of mixed-connector systems with automatic USB detection.
Key Features
- Frequency range: 100 kHz to 8.5 GHz
- 4 ports with individually configurable connectors
- Supported connector types: N (m/f), 3.5 mm (m/f), 7/16 (m/f), 4.3-10 (f)
- Virtually no warm-up time required
- Automatic detection and USB control
- Multiport calibration support
Applications
- Multi-port mixed-connector system calibration
- Flexible VNA setup configuration
- Multi-standard RF and microwave testing
- Switch matrix and multiport analyzer calibration
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | Type N-Female (Plug) |
