Rohde & Schwarz ZN-Z51 (1319.5507.32) Automatic Calibration Unit
Request a quote
Rohde & Schwarz ZN-Z51 automatic VNA calibration unit with 2 x 3.5mm ports, 100 kHz–8.5 GHz, USB control, and plug-and-play operation.
Product details
| Model | ZN-Z51 (1319.5507.32) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

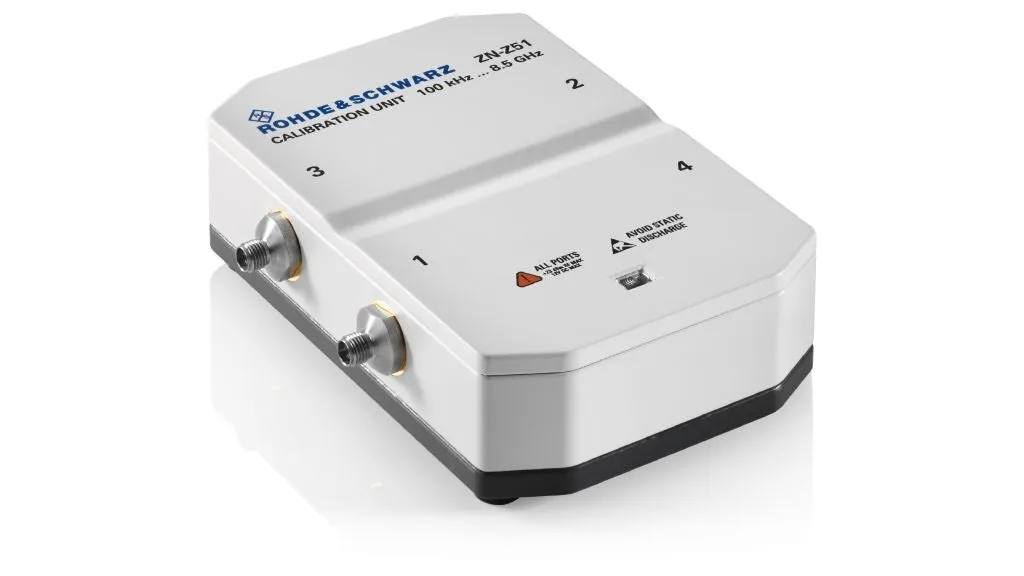

The Rohde & Schwarz ZN-Z51 (1319.5507.32) is an automatic calibration unit for vector network analyzers. This 2-port model features fixed 3.5 mm female connectors and operates from 100 kHz to 8.5 GHz. It requires virtually no warm-up time, supports automatic detection via USB, and enables seamless integration with R&S ZNBT, ZNB, and compatible VNA systems for reliable calibration.
Key Features
- Frequency range: 100 kHz to 8.5 GHz
- 2-port configuration with 3.5 mm female connectors
- Virtually no warm-up time required
- Automatic detection and USB control
- Multiport calibration support
- Automatic port assignment detection
Applications
- Vector network analyzer calibration and verification
- RF and microwave component characterization
- Automated network analyzer test systems
- Precision measurement setup verification
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
