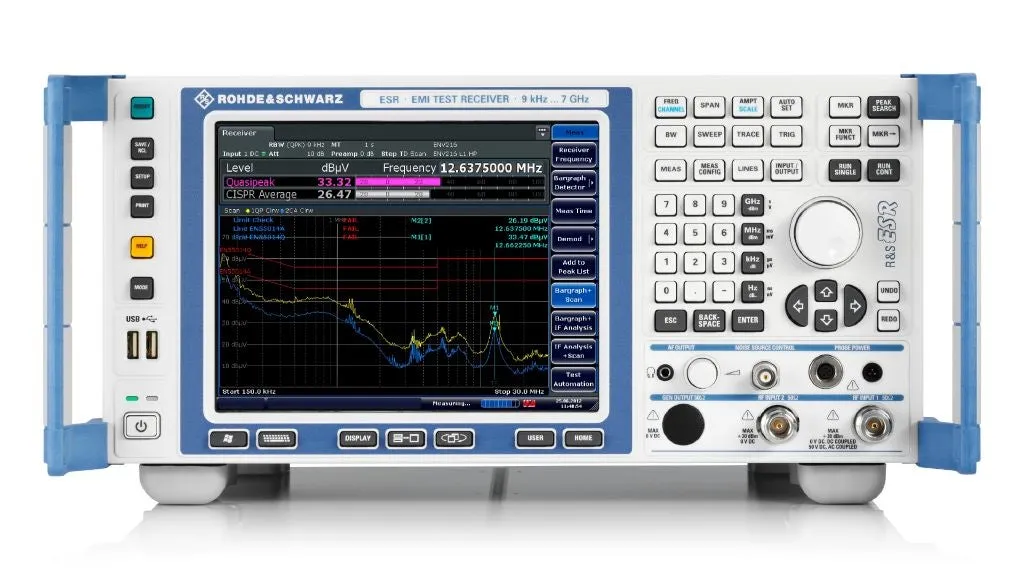

Rohde & Schwarz ESR7 EMI Test Receiver
Request a quote
Rohde & Schwarz ESR7 is a 7 GHz EMI test receiver and spectrum analyzer with real-time analysis, FFT-based time domain scanning, and compliance with CISPR 16-1-1, ANSI C63.2, and MIL-STD-461.
Product details
| Model | ESR7 (1316.3003.07) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ESR7 is an EMI test receiver and spectrum analyzer designed to measure electromagnetic disturbances using conventional stepped scans or ultrafast FFT-based time domain scanning. Operating from 9 kHz to 7 GHz, the ESR7 functions as both a powerful EMI test receiver for compliance measurements and a comprehensive signal and spectrum analyzer with real-time spectrum analysis and diagnostic tools for analyzing disturbance signals and their history.
Key Features
- Frequency range: 9 kHz to 7 GHz
- Ultrafast measurements with FFT-based time domain scan
- Real-time spectrum analysis with 40 MHz bandwidth (option)
- Measurement bandwidth: 10 Hz to 10 MHz, 40 MHz in zero-span
- Noise indication: less than -7 dBµV
- 1 dB compression: +10 dBm nominal @ 1 GHz
- Residual spurious responses: less than -103 dBm (1 MHz ≤ f ≤ 1 GHz)
- Intuitive touchscreen interface for easy operation
- Compact design with optional ruggedized housing for field use
- Optional DC power supply for mobile and outdoor applications
Applications
- EMC compliance testing and certification
- Electromagnetic disturbance measurement and analysis
- Signal and spectrum analysis for laboratory applications
- Field strength measurements with option modules
- Detection and analysis of hidden or sporadic emissions
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
