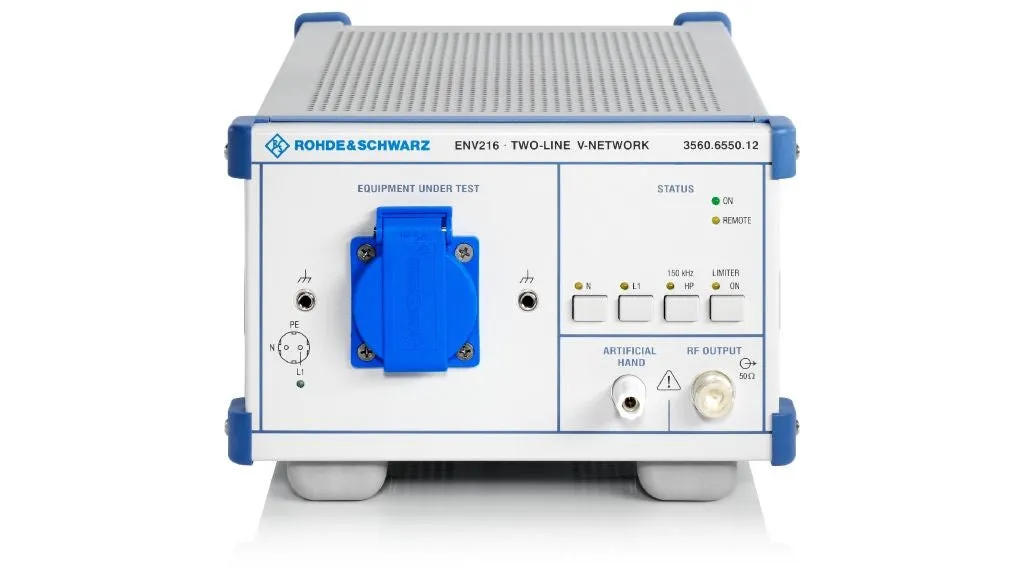

Rohde & Schwarz ENV216 Impedance Stabilization Network
Request a quote
Rohde & Schwarz ENV216 is a two-line V-network LISN (9 kHz–30 MHz, 15 A) meeting CISPR 16-1-2, EN 55016-1-2, and ANSI C63.4 standards for disturbance voltage measurements.
Product details
| Model | ENV216 (3560.6550.12) |
| Manufacturer | Rohde & Schwarz |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ENV216 is a two-line V-network impedance stabilization network (LISN) designed for disturbance voltage measurements on single-phase equipment under test. It meets CISPR 16-1-2, EN 55016-1-2, and ANSI C63.4 standards, offering a compact design with low weight ideal for on-site measurements and frequently varying applications.
Key Features
- Frequency range: 9 kHz to 30 MHz
- Power handling capacity: up to 16 A (country-specific)
- Simulated impedance: (50 μH + 5 Ω) || 50 Ω per CISPR 16-1-2
- Calibrated per CISPR 16-1-2 standards
- Compliant with CISPR, EN, VDE, ANSI, FCC Part 15, and MIL-STD-461
- Compact, lightweight design for portable field use
- Socket with protective earth contacts
Applications
- EMC/EMI disturbance voltage measurements
- Single-phase equipment testing
- On-site compliance testing
- Pre-compliance emissions testing
Specifications
| Frequency Range | 9 kHz to 30 MHz |
| Power Handling Capacity | up to 16 A (country-specific) |
| Simulated Impedance | (50 μH + 5 Ω) || 50 Ω |
| Network Type | Two-line V-network |
| Standards Compliance | CISPR 16-1-2, EN 55016-1-2, ANSI C63.4, VDE, FCC Part 15, MIL-STD-461 |
