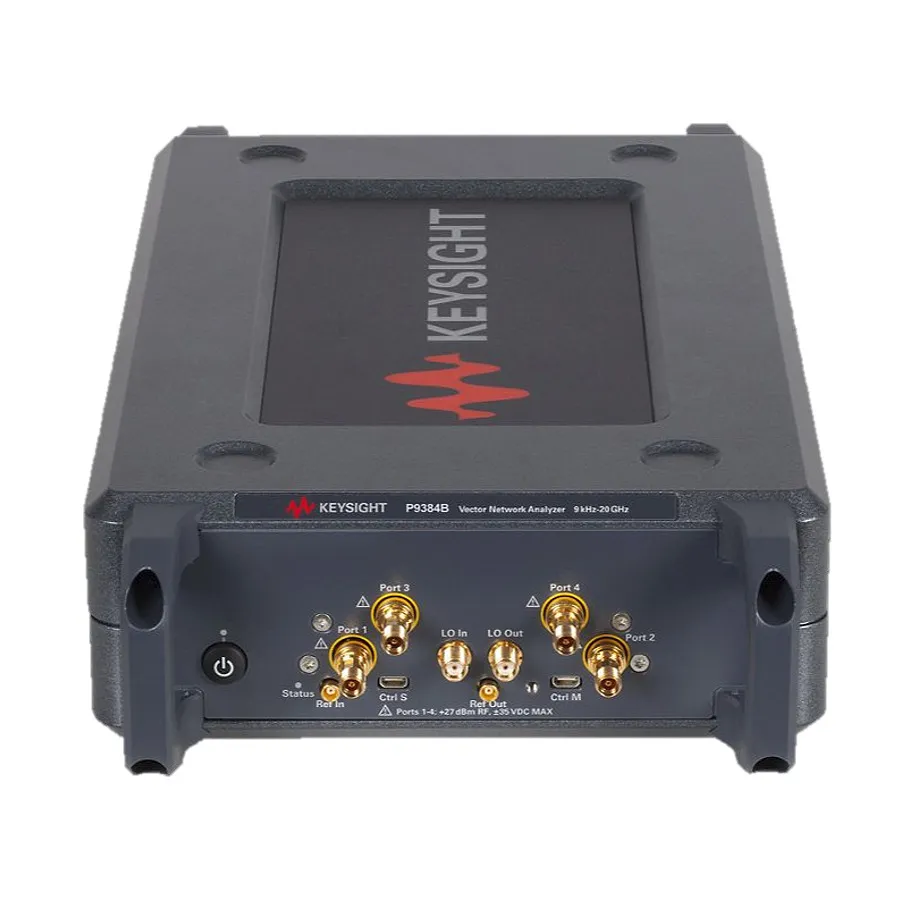

Keysight P9384B/001 Vector Network Analyzer
Request a quote
Keysight P9384B/001 provides vector network analysis from 9 kHz to 20 GHz with 4 ports and Thunderbolt 3, featuring enhanced TDR and automatic fixture removal for passive components.
Product details
| Model | P9384B/001 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9384B/001 is a compact vector network analyzer in the Streamline Series, designed for general-purpose network analysis of passive components. It operates from 9 kHz to 20 GHz and features Thunderbolt 3 connectivity for direct integration with host PCs. The analyzer shares the same measurement science and software platform as Keysight's PNA, ENA, and PXI VNA instruments, ensuring measurement consistency and repeatability across multiple systems in R&D and manufacturing environments.
Key Features
- Frequency range: 9 kHz to 20 GHz with 1 Hz resolution
- 4 test ports with 3.5 mm female connectors
- Thunderbolt 3 interface for direct connection to host PC
- Enhanced time-domain analysis with TDR capability
- Automatic fixture removal for accurate passive component characterization
- USB connectivity and comprehensive software platform
Applications
- Passive component characterization and verification
- Research and development labs
- Manufacturing and production test environments
- Microwave and RF network analysis
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 20 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Dynamic Range | 115 dB |
| Series | Streamline Series |
| Input Impedance | 50 Ω |
| Interface | Thunderbolt 3 |
