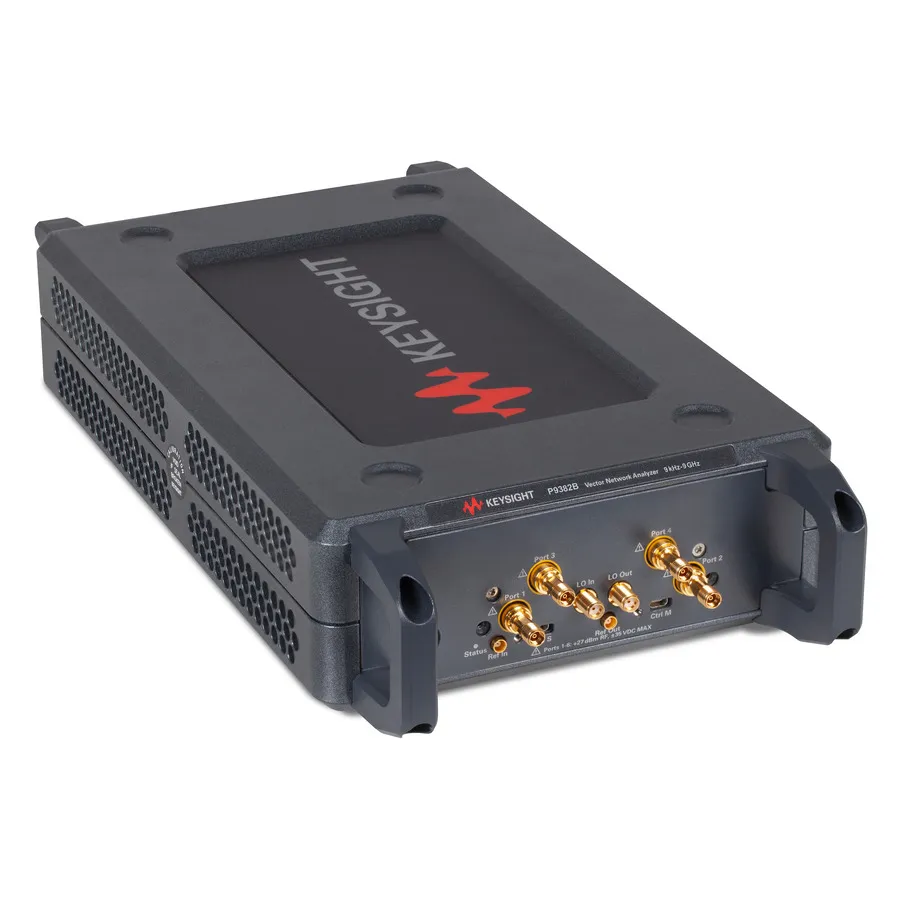

Keysight P9382B/001 Vector Network Analyzer
Request a quote
Keysight P9382B/001 is a 4-port vector network analyzer covering 9kHz to 9GHz with Thunderbolt 3 connectivity and TDR time-domain analysis.
Product details
| Model | P9382B/001 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9382B/001 is a 4-port vector network analyzer in the Streamline Series, designed for general-purpose network analysis of passive components. Operating from 9kHz to 9GHz with 1Hz frequency resolution, it delivers benchtop-level performance in a compact, portable form factor. The instrument connects via Thunderbolt 3 interface to an external computer for data processing and control.
Key Features
- Frequency range: 9kHz to 9GHz
- 4-port configuration with 3.5mm female connectors
- Thunderbolt 3 interface for high-speed connectivity
- 1Hz frequency resolution
- Time domain analysis with TDR (time-domain reflectometry)
- Automatic fixture removal for accurate component characterization
- Common software platform compatible with Keysight PNA, ENA, and PXI VNAs
- VNA activation software option (001) for feature compatibility and updates
Applications
- Passive component characterization and validation
- PCB transmission line analysis
- Filter and matching network design
- Cable and connector qualification
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 9 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Dynamic Range | 115 dB |
| Series | Streamline Series |
| Input Impedance | 50 Ω |
| Interface | Thunderbolt 3 |
