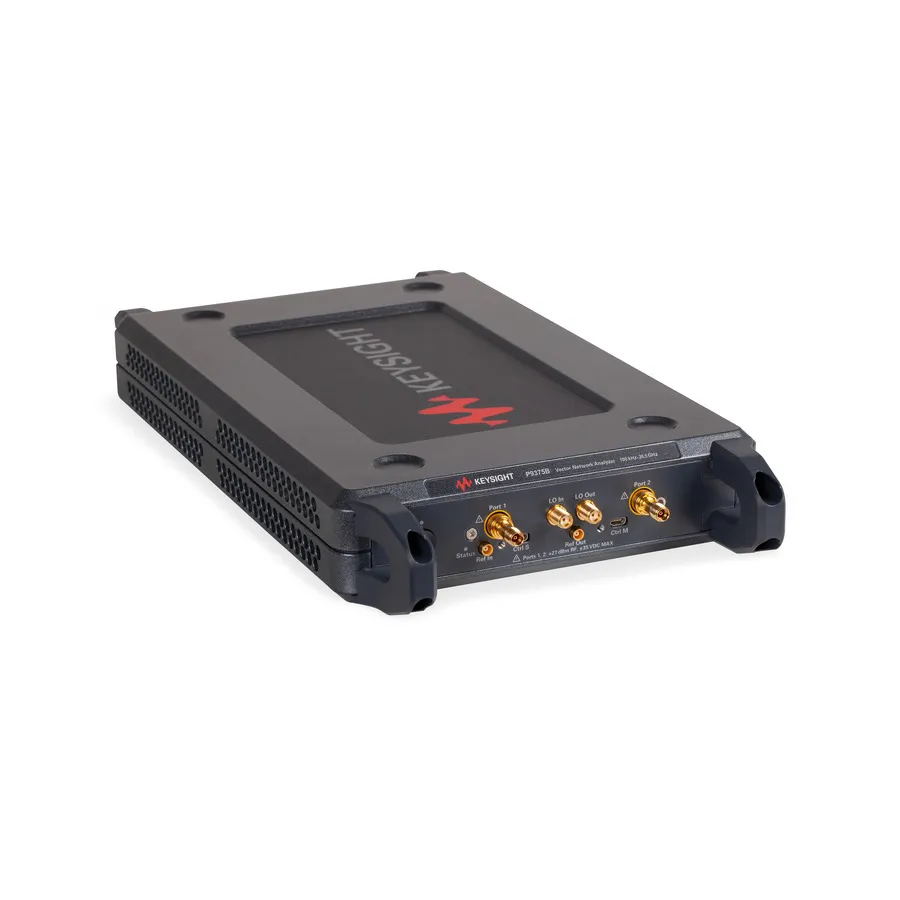

Keysight P9375B/001 Vector Network Analyzer
Request a quote
Keysight P9375B/001 is a turnkey vector network analyzer with activation software, 100 kHz to 26.5 GHz, 2-port, and Thunderbolt 3 connectivity.
Product details
| Model | P9375B/001 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9375B/001 is a complete vector network analyzer from the Streamline Series, equipped with VNA activation software (001 option). This option ensures compatibility with newly added features and keeps the instrument up to date with the latest measurement capabilities. The system operates from 100 kHz to 26.5 GHz with 2-port configuration and connects via Thunderbolt 3 for controlled operation from an external computer.
Key Features
- Frequency range: 100 kHz to 26.5 GHz
- 2-port vector network analyzer
- Thunderbolt 3 interface for high-speed control and data transfer
- Frequency resolution: 1 Hz
- Test port connectors: 3.5 mm female
- USB connectivity
- VNA activation software option (001) included for full feature compatibility
- Compatible with Keysight electronic calibration (ECal) modules
- Same measurement science and GUI as high-performance Keysight VNAs (PNA, ENA, PXI VNA)
Applications
- General-purpose network analysis of passive components
- Cable, connector, and filter characterization
- Time domain reflectometry (TDR) analysis
- Fixture removal and de-embedding measurements
- Manufacturing and quality control testing
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 100 kHz |
| Type | PC Based |
| Series | Streamline Series |
