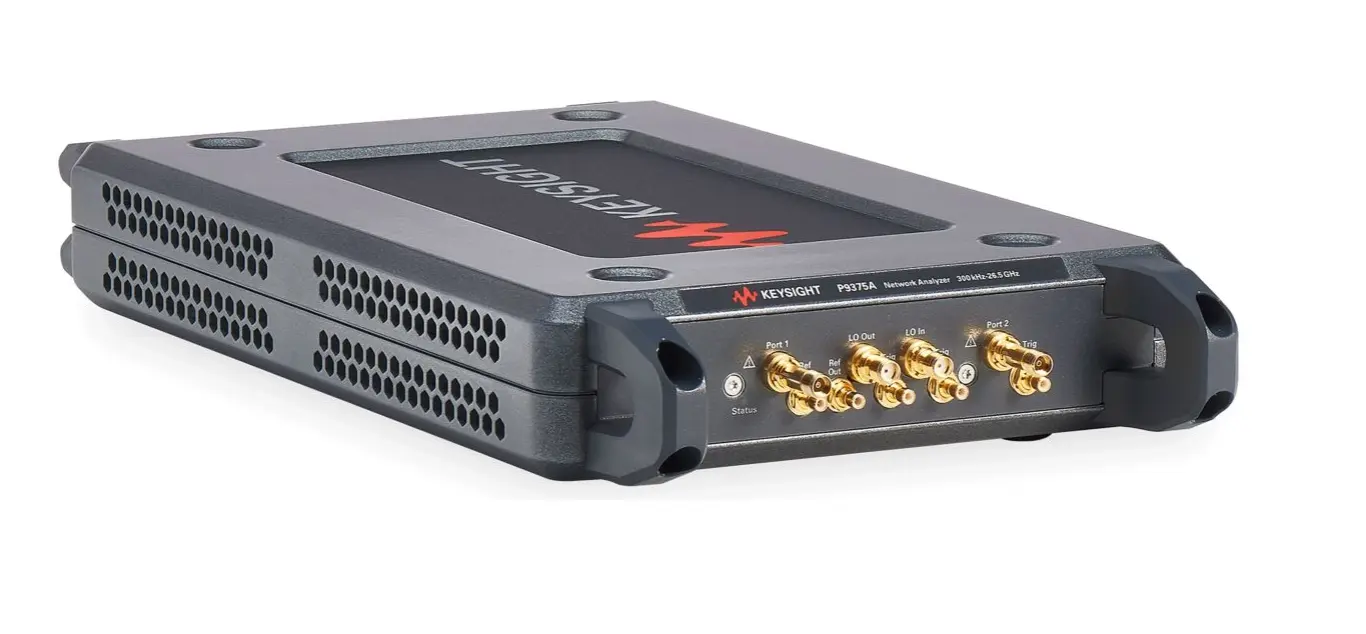

Keysight P9375A Vector Network Analyzer
Request a quote
Keysight P9375A is a compact USB vector network analyzer with 26.5 GHz coverage, 115 dB dynamic range, and excellent RF performance in a portable design.
Product details
| Model | P9375A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9375A is an affordable, compact USB-based 2-port vector network analyzer that dramatically reduces the footprint of RF test equipment. Part of the Streamline Series, it combines the trusted measurement science of Keysight VNAs with portability and ease of use, controlled via an external computer.
Key Features
- Frequency range: 300 kHz to 26.5 GHz, 2-port configuration
- Wide dynamic range: >115 dB at 10 Hz IFBW
- Low trace noise: <0.003 dBrms at 1 kHz IFBW
- High temperature stability: 0.005 dB/°C up to 4.5 GHz
- Compact chassis suitable for shared test locations
- USB interface for external computer control
- Ability to cascade two units for extended port configurations
- Compatible with all Keysight ECal modules and mechanical calibration kits
Applications
- Passive component characterization and validation
- RF filter and coupler testing
- Time-domain analysis with TDR capabilities
- Production testing and quality assurance
- Educational and research applications
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
| Form Factor | USB |
| Number of Ports | 2 |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 300 kHz |
| Type | PC Based |
