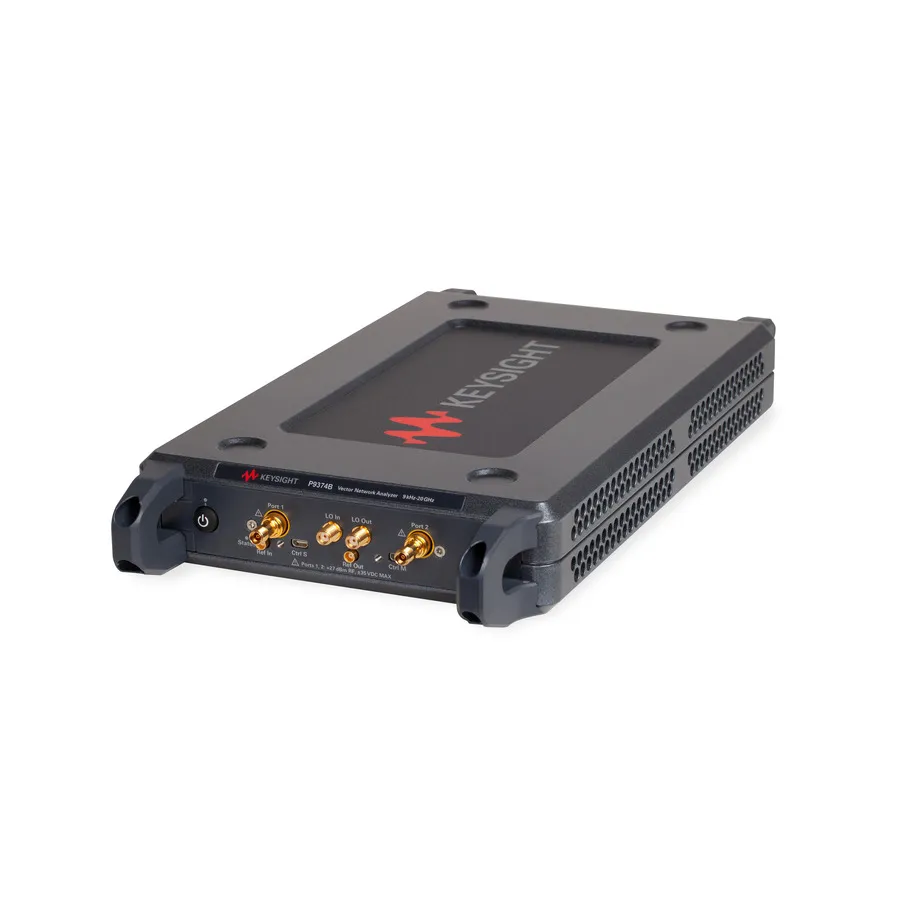

Keysight P9374B/001 Vector Network Analyzer
Request a quote
Keysight P9374B/001 is a 2-port VNA with 20 GHz coverage, Thunderbolt 3 interface, 115 dB dynamic range, and included VNA activation software option.
Product details
| Model | P9374B/001 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9374B/001 is a full-featured 2-port vector network analyzer covering 9 kHz to 20 GHz, equipped with Thunderbolt 3 connectivity and VNA activation software. This variant includes the /001 software option for compatibility with newly added features and regular firmware updates.
Key Features
- Frequency range: 9 kHz to 20 GHz, 2-port configuration
- Thunderbolt 3 interface with high-speed data transfer
- Dynamic range: >115 dB at 10 Hz IFBW
- Frequency resolution: 1 Hz
- 3.5 mm (female) test port connectors
- Trace noise: <0.0015 dBrms at 10 kHz IFBW
- Fast measurement cycle: <15 msec (201 points, 2-port)
- VNA activation software (001 option) for feature compatibility
- Compatible with all Keysight ECal modules and mechanical calibration kits
Applications
- S-parameter measurement and characterization
- Passive component testing with TDR analysis
- Automatic fixture removal and de-embedding
- Network analysis for RF and microwave components
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 20 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Series | Streamline Series |
